Throttle body-4.7L v-8 engine. Throttle position sensor (tps)-3.9/ 5.2/5.9L engines

Throttle body-4.7L v-8 engine

A (factory adjusted) set screw is used to mechanically limit the position of the throttle body throttle plate. Never attempt to adjust the engine idle speed using this screw. All idle speed functions are controlled by the Powertrain Control Module (PCM).

REMOVAL

(1) Remove the air duct and air resonator box at throttle body.

(2) Disconnect throttle body electrical connectors at IAC motor and TPS (Fig. 20).

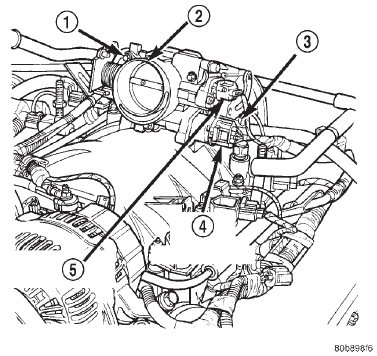

Fig. 20 Throttle Body, Sensors and Electrical Connectors-4.7L V-8 Engine Fig. 20 Throttle Body, Sensors and Electrical Connectors-4.7L V-8 Engine

1 - MOUNTING BOLTS (3)

2 - THROTTLE BODY

3 - IAT SENSOR CONNECTOR

4 - IAC MOTOR CONNECTOR

5 - TPS CONNECTOR

(3) Remove vacuum line at throttle body.

(4) Remove all control cables from throttle body (lever) arm. Refer to Accelerator Pedal and Throttle Cable.

(5) Remove three throttle body mounting bolts (Fig. 20).

(6) Remove throttle body from intake manifold.

INSTALLATION

(1) Clean throttle body-to-intake manifold o-ring.

(2) Clean mating surfaces of throttle body and intake manifold.

(3) Install throttle body to intake manifold by positioning throttle body to manifold alignment pins.

(4) Install three mounting bolts. Tighten bolts to 12 N*m (105 in. lbs.) torque.

(5) Install control cables.

(6) Install vacuum line to throttle body.

(7) Install electrical connectors.

(8) Install air duct/air box at throttle body.

Throttle position sensor (tps)-3.9/ 5.2/5.9L engines

REMOVAL

The TPS is located on side of throttle body.

(1) Remove air duct at throttle body.

(2) Disconnect TPS electrical connector.

(3) Remove two TPS mounting bolts (Fig. 21).

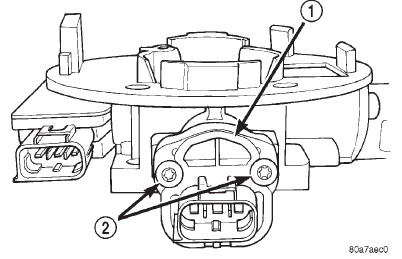

Fig. 21 TPS Mounting Bolts-3.9/5.2/5.9L Engines Fig. 21 TPS Mounting Bolts-3.9/5.2/5.9L Engines

1 - THROTTLE POSITION SENSOR

2 - MOUNTING SCREWS

(4) Remove TPS from throttle body.

INSTALLATION

The throttle shaft end of the throttle body slides into a socket in the TPS (Fig. 22). The TPS must be installed so that it can be rotated a few degrees. If the sensor will not rotate, install the sensor with the throttle shaft on the other side of the socket tangs.

The TPS will be under slight tension when rotated.

(1) Install the TPS and two retaining bolts.

(2) Tighten bolts to 7 N*m (60 in. lbs.) torque.

(3) Manually operate the throttle control lever by hand to check for any binding of the TPS.

(4) Connect TPS electrical connector to TPS.

(5) Install air duct at throttle body.
