Rear wheel house liner. Liftgate trim panel

Rear wheel house liner

REMOVAL

(1) Hoist and support vehicle.

(2) Remove tire.

(3) Remove plastic rivets attaching wheelhouse liner to vehicle (Fig. 66).

(4) Separate wheelhouse liner from vehicle.

INSTALLATION

(1) Position wheelhouse liner on vehicle.

(2) Align holes and install plastic rivets (Fig. 66).

(3) Install tire.

(4) Remove support and lower vehicle.

Liftgate trim panel

REMOVAL

(1) Pull upper trim outward to disengage spring clips.

(2) Separate upper trim from liftgate.

(3) Remove screws attaching lower trim to liftgate (Fig. 67).

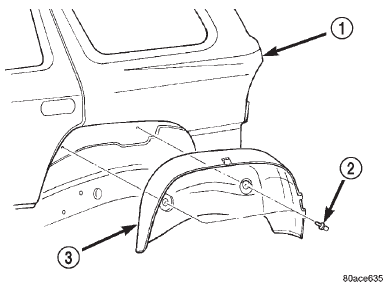

Fig. 66 Wheelhouse Liner Fig. 66 Wheelhouse Liner

1 - BODY

2 - PLASTIC RIVET

3 - WHEEL HOUSE LINER

(4) Pull lower trim outward to disengage spring clips.

(5) Disconnect liftgate lamp wire connector.

(6) Separate lower trim from liftgate.

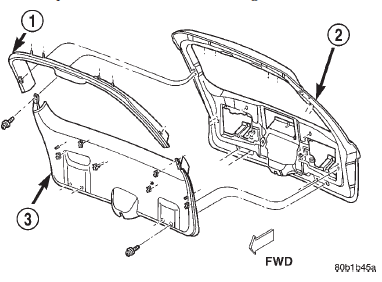

Fig. 67 Liftgate Trim Panel Fig. 67 Liftgate Trim Panel

1 - UPPER TRIM

2 - LIFTGATE

3 - LOWER TRIM

INSTALLATION

(1) Position lower trim at liftgate.

(2) Connect liftgate lamp wire connector.

(3) Align lower trim on liftgate and press inward to engage spring clips.

(4) Install screws attaching lower trim to liftgate (Fig. 67).

(5) Position upper trim on liftgate.

(6) Align upper trim to liftgate and press inward to engage spring clips.
