Rear door glass run channels. Rear door glass

Rear door glass run channels

REMOVAL

(1) Remove trim panel.

(2) Remove waterdam.

(3) Ensure glass is in full up position and supported.

Remove bolts attaching the run channels to door inner panel (Fig. 58).

(4) Remove speaker, if necessary.

(5) Separate run channels from door.

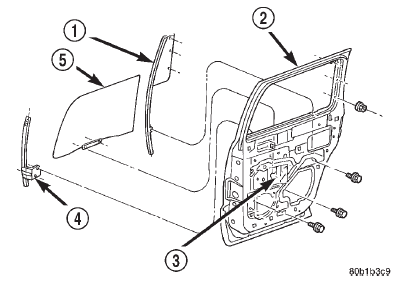

Fig. 58 Rear Door Glass Run Channels Fig. 58 Rear Door Glass Run Channels

1 - RUN CHANNEL WITH STATIONARY GLASS

2 - REAR DOOR

3 - REGULATOR

4 - RUN CHANNEL

5 - DOOR GLASS

INSTALLATION

(1) Position run channels in door.

(2) Install bolts attaching the run channels to door inner panel (Fig. 58).

(3) Install speaker, if necessary.

(4) Install waterdam.

(5) Install trim panel.

Rear door glass

REMOVAL

(1) Remove trim panel.

(2) Remove waterdam.

(3) Remove inner beltline weatherstrip (4) Remove outer beltline weatherstrip.

(5) Remove glass run weatherstrip.

(6) Remove bolts attaching door glass to regulator (Fig. 58).

(7) Separate door glass from door.

(8) Remove bolt attaching bottom of reward run channel to door inner panel.

(9) Remove nuts attaching stationary glass to door.

(10) Separate rearward run channel/stationary glass from door.

(11) Pull to separate stationary glass from run channel.

INSTALLATION

(1) Ensure glass and run channel are clean.

(2) Apply butyl adhesive to glass and insert in glass run channel.

(3) Install nuts attaching stationary glass to door.

Tighten nuts to 3 N*m (30 in. lbs.) torque.

(4) Install bolt attaching bottom of reward run channel to door inner panel.

(5) Position door glass in door.

(6) Install bolts attaching door glass to regulator (Fig. 58). Tighten bolts to 11 N*m (105 in. lbs.) torque.

(7) Install glass run weatherstrip.

(8) Install outer beltline weatherstrip.

(9) Install inner beltline weatherstrip (10) Install waterdam.

(11) Install trim panel.
