Quarter panel trim. Liftgate scuff plate

Quarter panel trim

REMOVAL

(1) Tumble 2nd row seats to cargo position.

(2) Remove 3rd row seat, if equipped.

(3) Remove C-pillar trim (Fig. 83).

(4) Remove D-pillar trim.

(5) Remove liftgate opening scuff pad.

(6) Remove screws attaching quarter panel trim to C-pillar and D-pillar.

(7) Route 2nd row seat belt through access slot in quarter panel trim.

(8) Grasp quarter panel trim and pull outward to disengage spring clips.

(9) Separate quarter panel trim from vehicle.

INSTALLATION

(1) Position quarter panel trim in vehicle.

(2) Route 2nd row seat belt through access slot in quarter panel trim.

(3) Align quarter panel trim spring clips and press inward to engage.

(4) Install screws attaching quarter panel trim to C-pillar and D-pillar.

(5) Install D-pillar trim.

(6) Install C-pillar trim.

(7) Install liftgate opening scuff pad.

(8) Install 3rd row seat, if equipped.

(9) Return 2nd row seats to seating position.

Liftgate scuff plate

REMOVAL

(1) Remove screws attaching cargo tie downs to liftgate scuff plate (Fig. 86).

(2) Grasp scuff plate and lift upward to disengage spring clips.

(3) Separate scuff plate from liftgate opening.

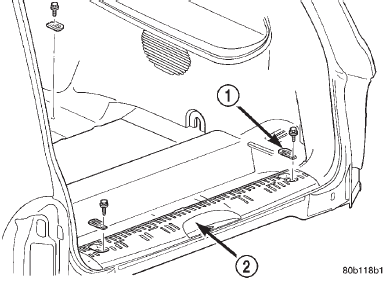

Fig. 86 Liftgate Scuff Plate

1 - CARGO TIE DOWN

2 - LIFT GATE SCUFF PLATE

INSTALLATION

(1) Position scuff plate in liftgate opening.

(2) Press scuff plate to engage spring clips.

(3) Install screws attaching cargo tie downs to liftgate scuff plate (Fig. 86).
