Power distribution system. Power distribution center

Power distribution system


This group covers the various standard and optional power distribution components used on this model. The power distribution system for this vehicle consists of the following components:

  • Power Distribution Center (PDC)
  • Junction Block (JB)
  • Relay and Fuse Block.

The power distribution system also incorporates various types of circuit control and protection features, including:

  • Automatic resetting circuit breakers
  • Blade-type fuses
  • Cartridge fuses
  • Circuit splice blocks
  • Flashers
  • Relays.

Following are general descriptions of the major components in the power distribution system. See the owner's manual in the vehicle glove box for more information on the features and use of all of the power distribution system components. Refer to the index in this service manual for the location of complete circuit diagrams for the various power distribution system components.


The power distribution system for this vehicle is designed to provide safe, reliable, and centralized distribution points for the electrical current required to operate all of the many standard and optional factory- installed electrical and electronic powertrain, chassis, safety, security, comfort and convenience systems.

At the same time, the power distribution system was designed to provide ready access to these electrical distribution points for the vehicle technician to use when conducting diagnosis and repair of faulty circuits. The power distribution system can also prove useful for the sourcing of additional electrical circuits that may be required to provide the electrical current needed to operate many accessories that the vehicle owner may choose to have installed in the aftermarket.

Power distribution center

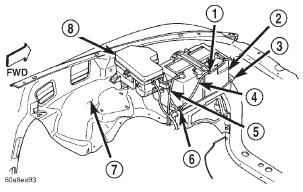

Fig. 1 Power Distribution Center Location Fig. 1 Power Distribution Center Location

1 - CLIP


3 - TRAY



6 - CLIP



All of the electrical current distributed throughout this vehicle is directed through the standard equipment Power Distribution Center (PDC) (Fig. 1). The molded plastic PDC housing is located in the left front corner of the engine compartment, just behind the battery. The PDC houses the generator cartridge fuse and up to ten maxi-type cartridge fuses, which replace all in-line fusible links. The PDC also houses up to seven blade-type mini fuses, up to thirteen International Standards Organization (ISO) relays (one standard-type and twelve micro-type), two joint connectors (one sixteen-way and one twenty-six-way) and a sixteen-way engine wire harness in-line connector.

The PDC housing is secured in the engine compartment at three points. Integral mounts on the front and inboard sides of the PDC housing engage and latch to stanchions that are integral to the molded plastic battery tray. An integral bracket on the rear of the PDC housing is secured with a screw to the top of the left front inner wheel house. The PDC housing has a molded plastic cover that includes two integral latches, one on each side. The PDC cover is easily opened and removed for service access and has a convenient fuse and relay layout map integral to the inside surface of the cover to ensure proper component identification.

The PDC unit cannot be repaired and is only serviced as a unit with the headlamp and dash wire harness. If the internal circuits or the PDC housing are faulty or damaged, the headlamp and dash wire harness unit must be replaced.


All of the current from the battery and the generator output enters the PDC through two cables with eyelets that are secured with nuts to the two B(+) terminal studs located just inside the inboard side of the PDC housing. The PDC cover is unlatched and removed to access the battery and generator output connection B(+) terminal studs, the fuses, the relays, the joint connectors and the engine wire harness inline connector. Internal connection of all of the PDC circuits is accomplished by an intricate combination of hard wiring and bus bars. Refer to Power Distribution in the index of this service manual for the location of complete PDC circuit diagrams.
