Headliner

REMOVAL

(1) Disconnect battery negative cable.

(2) Remove sunvisors and sunvisor arm supports.

(3) Remove coat hooks.

(4) Remove overhead assist handle.

(5) Remove dome lamp.

(6) Remove overhead console, if equipped.

(7) Remove outlet bezel for rear air conditioner, if equipped.

(8) Remove blower control switch for rear air conditioner, if equipped.

(9) Remove upper liftgate opening trim.

(10) Disengage A-pillar, B-pillar, C-pillar, and D-pillar trim as necessary to prevent trim panel interference.

(11) Move 2nd row seats to cargo position.

(12) Move front seats to full recline position.

(13) Move 3rd row seat to cargo position, if equipped.

(14) Remove push-in fasteners attaching headliner to roof panel (Fig. 107).

(15) Carefully bow headliner and remove through the liftgate opening (Fig. 106).

INSTALLATION

(1) Carefully bow headliner and slide through the liftgate opening (Fig. 106).

(2) Install push-in fasteners attaching headliner to roof panel (Fig. 107).

(3) Engage A-pillar, B-pillar, C-pillar, and D-pillar trim.

(4) Install upper liftgate opening trim.

(5) Install blower control switch for rear air conditioner, if equipped.

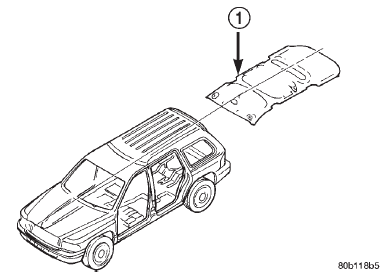

Fig. 106 Headliner Fig. 106 Headliner

1 - HEADLINER

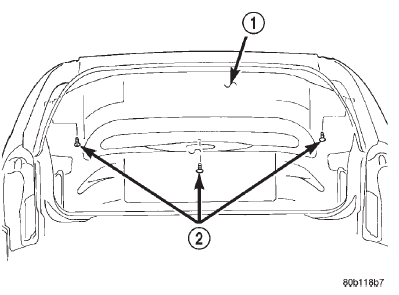

Fig. 107 Headliner Push-in Fasteners Fig. 107 Headliner Push-in Fasteners

1 - HEADLINER

2 - PUSH-IN FASTENER

(6) Install outlet bezel for rear air conditioner, if equipped.

(7) Install overhead console, if equipped.

(8) Install dome lamp.

(9) Install overhead assist handle.

(10) Install coat hooks.

(11) Install sunvisors and sunvisor arm supports.

(12) Return seats to seating position.

(13) Connect battery negative cable.
