Front door glass. Front door window regulator

Front door glass

REMOVAL

(1) Remove door trim panel.

(2) Remove water dam as necessary to gain access to glass regulator arm.

(3) Remove inner door belt weatherstrip.

(4) Remove outer door belt weatherstrip.

(5) Lower glass to full down position and align glass regulator arm with access holes in inner door panel.

(6) Remove front glass run channel.

(7) Remove screws attaching glass channel to regulator arm (Fig. 37).

(8) Separate glass from regulator arm.

(9) Lift glass upward and out of opening at top of door.

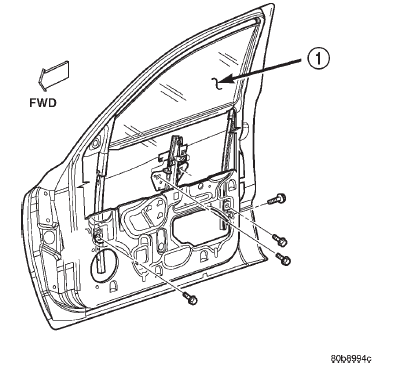

Fig. 37 Door Glass Fig. 37 Door Glass

1 - DOOR GLASS

INSTALLATION

(1) Slowly lower glass into door.

(2) Position glass in regulator arm.

(3) Install front glass run channel.

(4) Install screws attaching glass channel to regulator arm.

(5) Ensure glass is aligned in run channels and tighten run channel bolts.

(6) Install outer door belt weatherstrip.

(7) Install inner door belt weatherstrip.

(8) Install water dam.

(9) Install door trim panel.

Front door window regulator

REMOVAL

(1) Remove door trim panel.

(2) Partially remove waterdam.

(3) Position glass to access the fasteners. Remove the fasteners.

(4) Disengage glass from regulator lift channel.

(5) Position glass up into door frame (rest glass on a block of wood on door reinforcement).

(6) Disconnect regulator wire harness.

(7) Remove screws attaching window regulator to door inner panel (Fig. 38) and (Fig. 39).

(8) Remove window regulator from door.

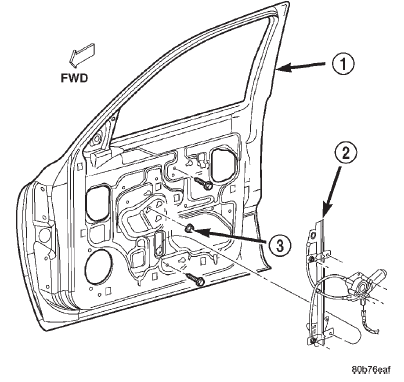

Fig. 38 Front Door Window Regulator Fig. 38 Front Door Window Regulator

1 - FRONT DOOR

2 - POWER REGULATOR

3 - NUT

INSTALLATION

(1) Position window regulator in door.

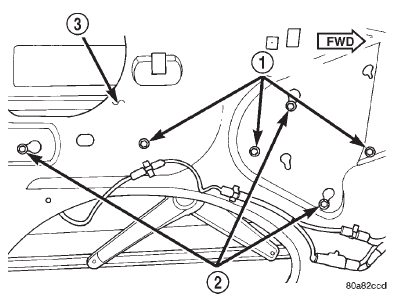

Fig. 39 Power Regulator Bolts Fig. 39 Power Regulator Bolts

1 - REMOVE BOLTS

2 - LOOSEN BOLTS

3 - DOOR INNER PANEL

(2) Loosely install screws attaching window regulator to door inner panel.

(3) Position glass onto window regulator lift channel.

(4) Install glass to lift channel fasteners.

(5) Cycle the window glass to the full up position.

(6) Tighten bolts attaching lower front glass run channel to door inner panel.

(7) Tighten fasteners holding window regulator to door inner panel.

(8) Connect regulator wire harness, if equipped.

(9) Install waterdam.

(10) Install door trim panel.
