Compressor clutch. Compressor clutch relay
DESCRIPTION The compressor clutch assembly consists of a stationary
electromagnetic coil, a hub bearing and pulley
assembly, and a clutch plate (Fig. 3). The
electromagnetic coil unit and the hub bearing and
pulley assembly are each retained on the nose of the
compressor front housing with snap rings. The clutch
plate is mounted to the compressor shaft and secured
with a nut.

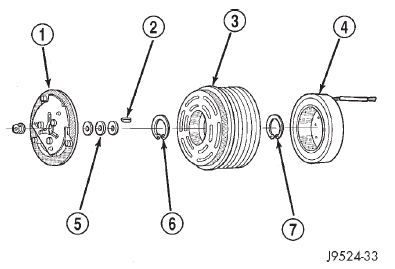

Fig. 3 Compressor Clutch - Typical 1 - CLUTCH PLATE 2 - SHAFT KEY 3 - PULLEY 4 - COIL 5 - CLUTCH SHIMS 6 - SNAP RING 7 - SNAP RING OPERATION These components provide the means to engage
and disengage the compressor from the engine serpentine
accessory drive belt. When the clutch coil is energized, it magnetically
draws the clutch into contact
with the pulley and drives the compressor shaft.
When the coil is not energized, the pulley freewheels
on the clutch hub bearing, which is part of the pulley.
The compressor clutch and coil are the only serviced
parts on the compressor.
The compressor clutch engagement is controlled by
several components: the heater-A/C mode control
switch, the electronic cycling clutch switch, the low
pressure cut-off switch, the high pressure cut-off
switch, the compressor clutch relay, and the Powertrain
Control Module (PCM). The PCM may delay
compressor clutch engagement for up to thirty seconds.
Refer to Group 14 - Fuel System for more information
on the PCM controls. DESCRIPTION The compressor clutch relay is an International
Standards Organization (ISO) micro-relay. The terminal
designations and functions are the same as a conventional
ISO relay. However, the micro-relay
terminal orientation (footprint) is different, the current
capacity is lower, and the relay case dimensions
are smaller than those of the conventional ISO relay. OPERATION The compressor clutch relay is an electromechanical
device that switches battery current to the compressor
clutch coil when the Powertrain Control
Module (PCM) grounds the coil side of the relay. The
PCM responds to inputs from the heater-A/C mode
control switch, the electronic cycling clutch switch,
the low pressure cut-off switch, and the high pressure
cut-off switch. See Compressor Clutch Relay in
the Diagnosis and Testing section of this group for
more information.
The compressor clutch relay is located in the Power
Distribution Center (PDC) in the engine compartment.
Refer to the PDC label for relay identification
and location.
The compressor clutch relay cannot be repaired
and, if faulty or damaged, it must be replaced.Compressor clutch
