3Rd row seat cushion frame. Head restraint sleeve

3Rd row seat cushion frame

REMOVAL

(1) Lift seat cushion upward.

(2) From the underside of the seat cushion, remove bolts attaching the seat cushion/frame to lift bar.

(3) Separate seat cushion/frame from vehicle

INSTALLATION

(1) Position seat cushion/frame in vehicle.

(2) Install the bolts attaching seat cushion/frame to lift bar. Tighten bolts to 24 N*m (17 ft. lbs.) torque.

(3) Place seat cushion in seating position.

Head restraint sleeve

NOTE: When removing the head restraint sleeves and guides, the retaining tabs on the sleeves will be damaged during the removal process. Check the availability of replacement parts before servicing.

REMOVAL

(1) Remove head restraint.

(2) Using a trim stick, pry head restraint sleeves and guides from seat back. (Fig. 15).

(3) Separate head restraint sleeves and guides from seat back and discard.

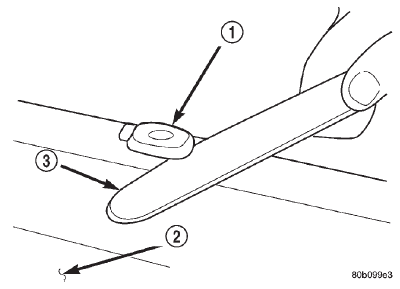

Fig. 15 Head Restrain Sleeve Fig. 15 Head Restrain Sleeve

1 - HEAD RESTRAINT SLEEVE

2 - SEAT BACK

3 - TRIM STICK

INSTALLATION

(1) Position new head restraint sleeves and guides in seat back (2) Rotate head restraint sleeve until aligned with slot in the guide and press downward to secure.

Ensure head restraint sleeve is anchored securely.

(3) Install head restraint.
