2Nd row seat cushion cover. 2Nd row seat cushion

2Nd row seat cushion cover

REMOVAL

(1) Remove tumble release handle.

(2) Remove latch side shield.

(3) Remove seat from frame. Refer to 2nd Row Seat Cushion for removal procedures.

(4) Disengage J-straps attaching cover to seat cushion frame.

(5) Separate cushion/cover from seat frame.

INSTALLATION

(1) Position cushion/cover on seat frame.

(2) Engage J-straps attaching cover to seat cushion frame.

(3) Install seat to frame. Refer to 2nd Row Seat Cushion for installation procedures.

(4) Install latch side shield.

(5) Install tumble release handle.

REMOVAL

(1) Remove seat back.

(2) Position seat cushion in forward tumble position.

(3) Using a breaker bar or equivalent, rotate the outboard spring loaded pivot pin to release seat cushion from frame (Fig. 9).

(4) Remove the pivot pin and spring.

(5) Separate seat cushion from frame.

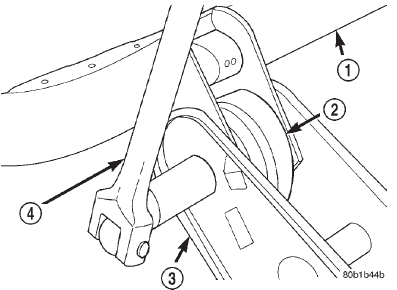

Fig. 9 Pivot Pin And Spring

1 - SEAT CUSHION

2 - SPRING

3 - FRAME

4 - BREAKER BAR

INSTALLATION

(1) Position seat cushion on frame.

(2) Align the pivot pin and spring with seat cushion and frame.

(3) Using a breaker bar or equivalent, rotate the outboard spring loaded pivot pin to engage spring and secure seat cushion to frame.

(4) Install seat back.
