2Nd row center seat cushion. 2Nd row center seat back

2Nd row center seat cushion

REMOVAL

(1) Remove 2nd row seat assembly.

(2) Remove outboard seats (Fig. 12).

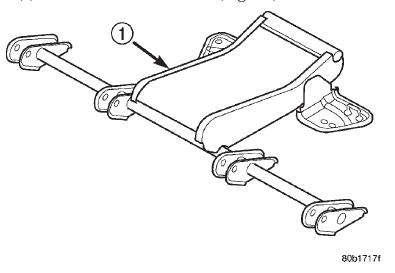

Fig. 12 2nd Row Center Seat Cushion Fig. 12 2nd Row Center Seat Cushion

1 - 2ND ROW CENTER SEAT CUSHION

INSTALLATION

(1) Transfer applicable components.

(2) Install outboard seats.

(3) Install 2nd row seat assembly.

2Nd row center seat back

REMOVAL

(1) Tumble outboard seats forward.

(2) Remove screw attaching cover to hinge.

(3) Using a trim stick, pry trim covers from center seat back to center seat cushion hinge (Fig. 13).

(4) Remove bolts attaching center seat back to seat cushion (Fig. 14).

(5) Separate center seat back from seat cushion.

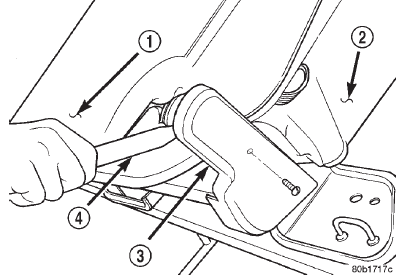

Fig. 13 2nd Row Center Seat Back Hinge Cover Fig. 13 2nd Row Center Seat Back Hinge Cover

1 - 2ND ROW CENTER SEAT BACK

2 - SEAT CUSHION

3 - HINGE COVER

4 - TRIM STICK

INSTALLATION

(1) Position center seat back on seat cushion.

(2) Install bolts attaching center seat back to seat cushion (Fig. 14). Tighten bolt located in round hole first than bolt located in slotted hole. Tighten bolts to 27 N*m (19 ft. lbs.) torque.

(3) Install covers on center seat back to seat cushion hinge.

(4) Install screw attaching cover to hinge.

(5) Return outboard seats to seating position.
