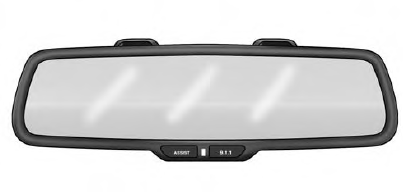

Automatic Dimming Mirror - If Equipped

ASSIST Call

The ASSIST Button is used to automatically connect you to any one of the following support centers:

•  Roadside Assistance - If you get a flat tire, or need a tow, just push the ASSIST button and you'll be connected to someone who can help. Roadside Assistance will know what vehicle you're driving and its location.Additional fees may apply for roadside Assistance.
•  Uconnect Access Customer Care - In-vehicle support for Uconnect Access and Uconnect Access Via Mobile features.
•  Vehicle Customer Care - Total support for all other vehicle issues.

9-1-1 Call

1. Push the 9-1-1 Call button on the Rearview Mirror.NOTE: In case the 9-1-1 Call button is pushed in error, there will be a 10 second delay before the 9-1-1 Call system initiates a call to a 9-1-1 operator. To cancel the 9-1-1 Call connection, push the 9-1-1 Call button on the Rearview Mirror or press the cancellation button on the Device Screen. Termination of the 9-1-1 Call will turn off the green LED light on the Rearview Mirror.
2.  The LED light located between the ASSIST and 9-1-1 buttons on the Rearview Mirror will turn green once a connection to a 9-1-1 operator has been made.
3. Once a connection between the vehicle and a 9-1-1 operator is made, the 9-1-1 Call system may transmit the following important vehicle information to a 9-1-1 operator:

•  Indication that the occupant placed a 9-1-1 Call.
•  The vehicle brand.
•  The last known GPS coordinates of the vehicle.

4.  You should be able to speak with the 9-1-1 operator through the vehicle audio system to determine if additional help is needed.

NOTE:

•  Your vehicle may be transmitting data as authorized by the subscriber.
•  Once a connection is made between the vehicle's 9-1-1 Call system and the 9-1-1 operator, the 9-1-1 operator may be able to open a voice connection with the vehicle to determine if additional help is needed.Once the 9-1-1 operator opens a voice connection with the vehicle's 9-1-1 Call system, the operator should be able to speak with you or other vehicle occupants and hear sounds occurring in the vehicle.The vehicle's 9-1-1 Call system will attempt to remain connected with the 9-1-1 operator until the 9-1-1 operator terminates the connection.

5.  The 9-1-1 operator may attempt to contact appropriate emergency responders and provide them with important vehicle information and GPS coordinates.

9-1-1 Call System Limitations

Vehicles sold in Canada and Mexico DO NOT have 9-1-1 Call system capabilities.

9-1-1 or other emergency line operators in Canada and Mexico may not answer or respond to 9-1-1 system calls.

If the 9-1-1 Call system detects a malfunction, any of the following may occur at the time the malfunction is detected, and at the beginning of each ignition cycle:

•  The Rearview Mirror light located between the ASSIST and 9-1-1 buttons will continuously be illuminated red.
•  The Device Screen will display the following message "Vehicle device requires service. Please contact your dealer."
•  An In-Vehicle Audio message will state "Vehicle device requires service. Please contact your dealer."

Even if the 9-1-1 Call system is fully functional, factors beyond FCA US LLC's control may prevent or stop the 9-1-1 Call system operation. These include, but are not limited to, the following factors:

•  Delayed accessories mode is active.
•  The ignition is in the OFF position.
• The vehicle's electrical systems are not intact.
•  The 9-1-1 Call system software and/or hardware are damaged during a crash.
•  The vehicle battery loses power or becomes disconnected during a vehicle crash.
•  1X(voice/data) or 3G(data) network and/or Global Positioning Satellite signals are unavailable or obstructed.
•  Equipment malfunction at the 9-1-1 operator facility.
•  Operator error by the 9-1-1 operator.
•  1X (voice/data) or 3G (data) network congestion.
•  Weather.
•  Buildings, structures, geographic terrain, or tunnels.

NOTE:

•  Your vehicle may be transmitting data as authorized by the subscriber.
•  Never place anything on or near the vehicle's 1X (voice/data) or 3G (data) and GPS antennas. You could prevent 1X (voice/data) or 3G (data) and GPS signal reception, which can prevent your vehicle from placing an emergency call. An operable 1X (voice/data) or 3G (data) network connection and a GPS signal is required for the 9-1-1 Call system to function properly

General Information

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
