REMOVAL
(1) Remove door trim panel.
(2) Remove outside handle.

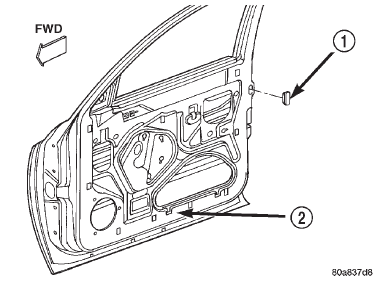

Fig. 31 Access Plug
1 - ACCESS PLUG
2 - DOOR
(3) Disengage lock cylinder to latch rod from the lock cylinder.
(4) Using a small flat blade, pry lock cylinder retaining clip from lock cylinder housing/outside handle (Fig. 33).
(5) Push lock cylinder out of lock cylinder housing/ outside handle.

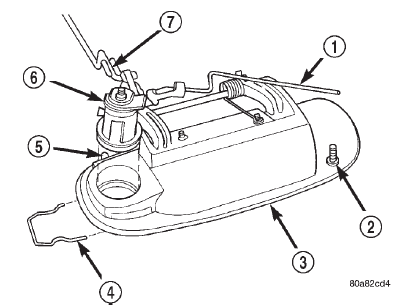

Fig. 33 Lock Cylinder
1 - LOCK CYLINDER TO LATCH ROD
2 - STUD
3 - OUTSIDE HANDLE
4 - RETAINING CLIP
5 - STUD
6 - LOCK CYLINDER
7 - LOCK BUTTON ROD

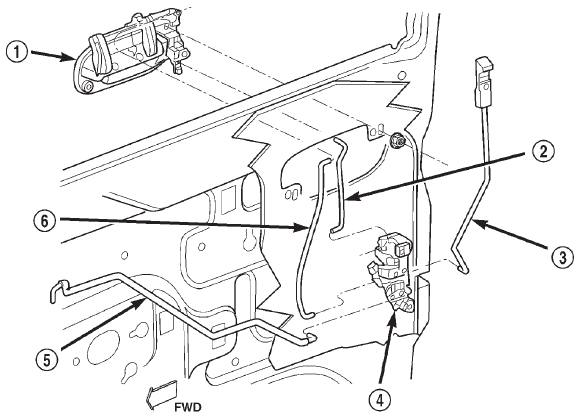

Fig. 32 Outside Door Handle
1 - OUTSIDE HANDLE
2 - LOCK CYLINDER TO LATCH ROD
3 - LOCK BUTTON TO LATCH ROD
4 - LATCH
5 - INSIDE HANDLE TO LATCH ROD
6 - OUTSIDE HANDLE TO LATCH ROD
INSTALLATION
(1) Push lock cylinder into lock cylinder housing/ outside handle. Ensure the lock cylinder is fully seated in the handle.
(2) Install lock cylinder retaining clip. Ensure the clip is fully seated.
(3) Engage lock cylinder to latch rod to the lock cylinder.
(4) Install outside handle.
(5) Install door trim panel.
