Body » Body component service » Specifications
Weld locations

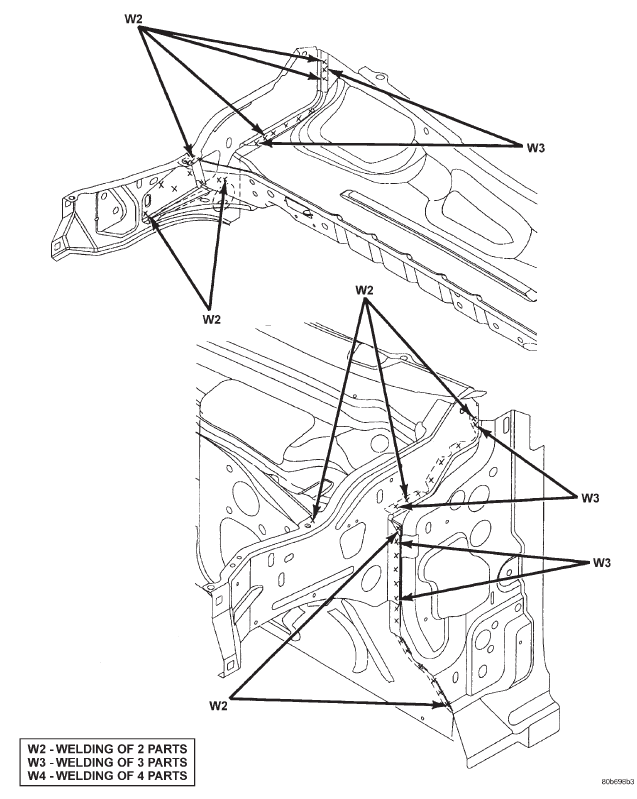

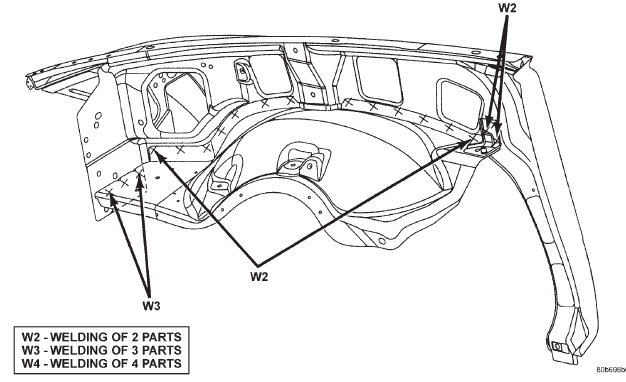

FRONT FENDER AND INNER WHEELHOUSE

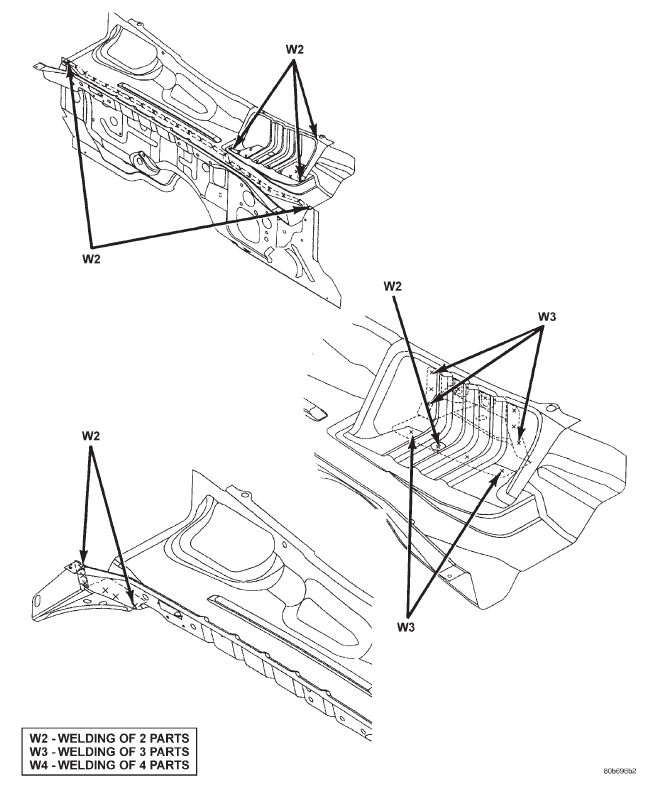

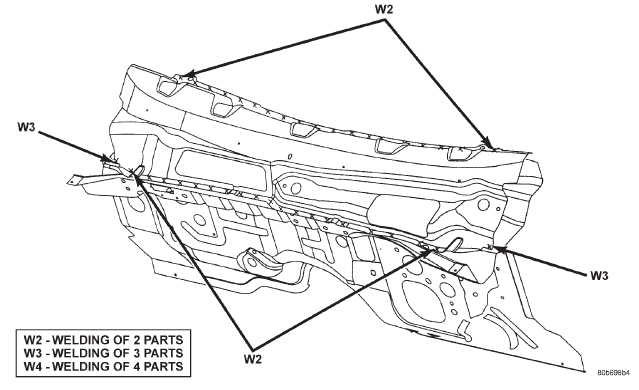

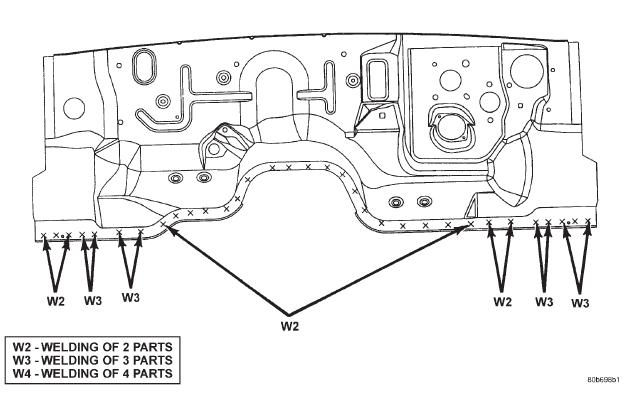

COWL AND DASH PANEL

COWL AND DASH PANEL

COWL AND DASH PANEL

COWL AND DASH PANEL

COWL AND DASH PANEL

COWL AND DASH PANEL

COWL AND DASH PANEL

COWL AND DASH PANEL

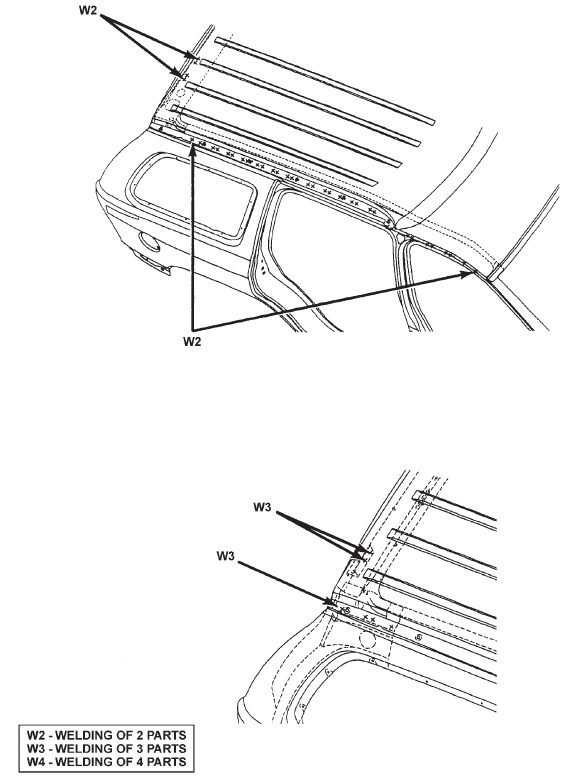

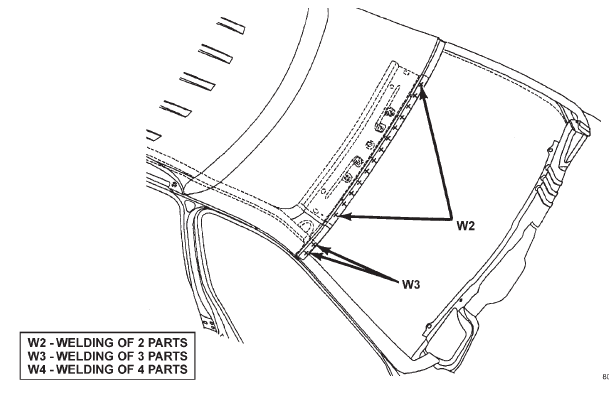

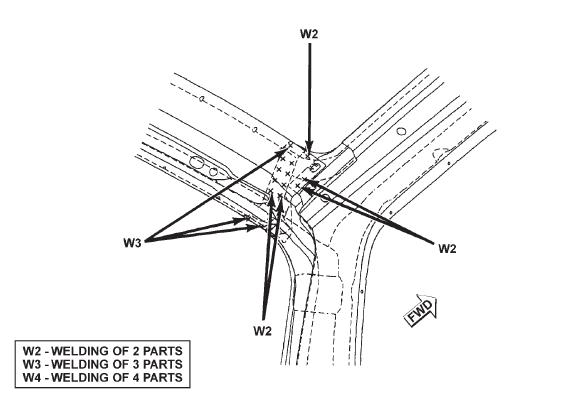

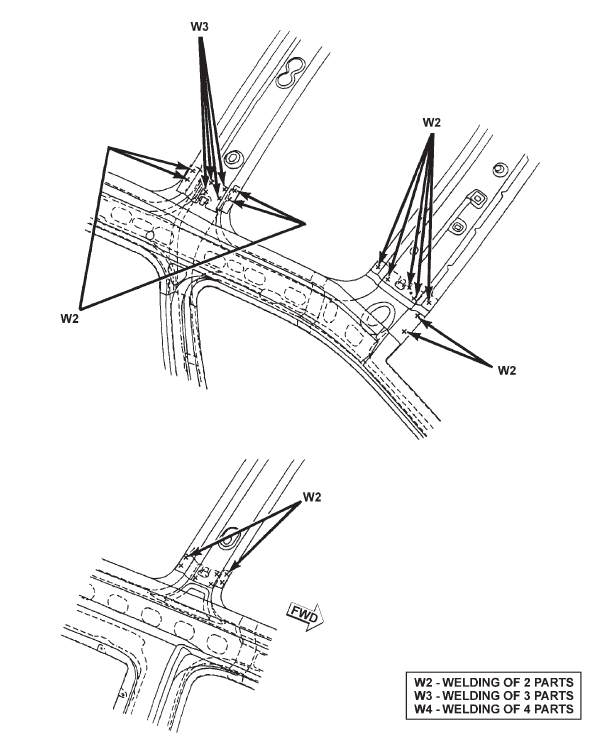

ROOF PANEL AND ROOF BOWS

ROOF PANEL AND ROOF BOWS

ROOF PANEL AND ROOF BOWS

ROOF PANEL AND ROOF BOWS

ROOF PANEL AND ROOF BOWS

ROOF PANEL AND ROOF BOWS

ROOF PANEL AND ROOF BOWS

ROOF PANEL AND ROOF BOWS

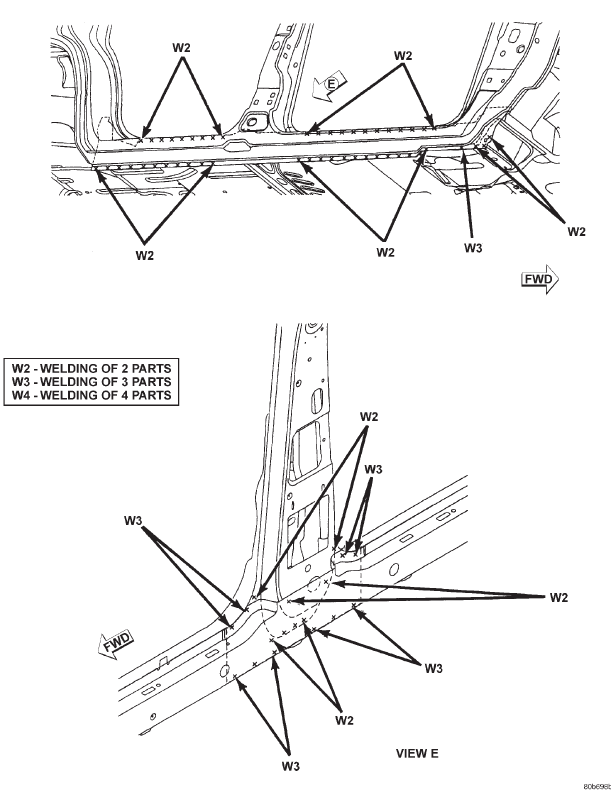

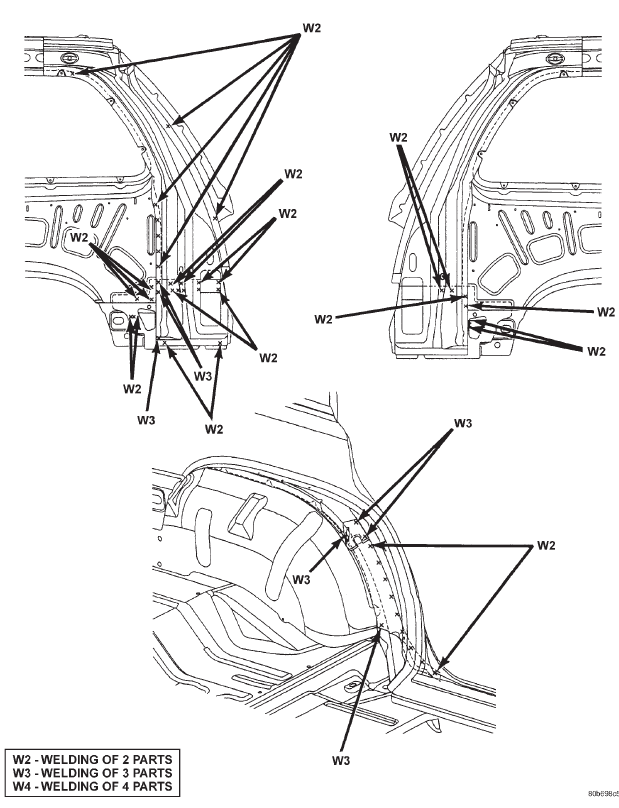

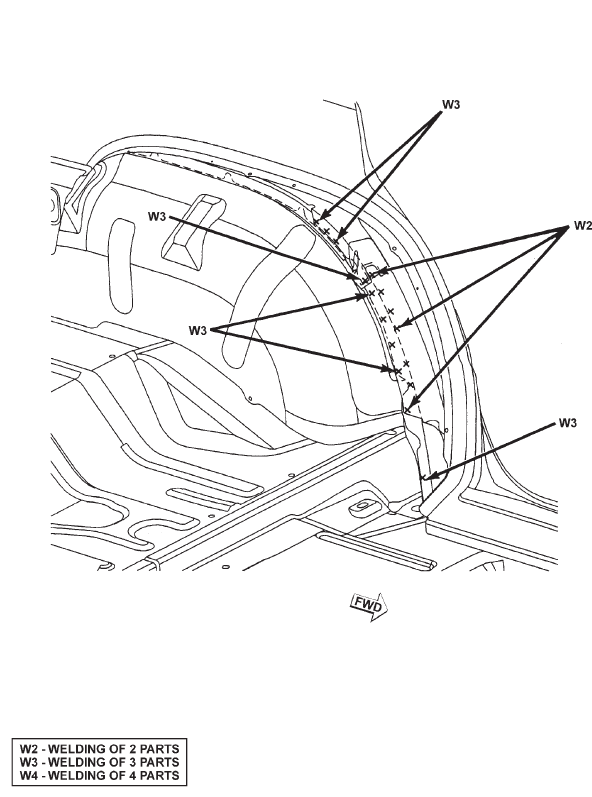

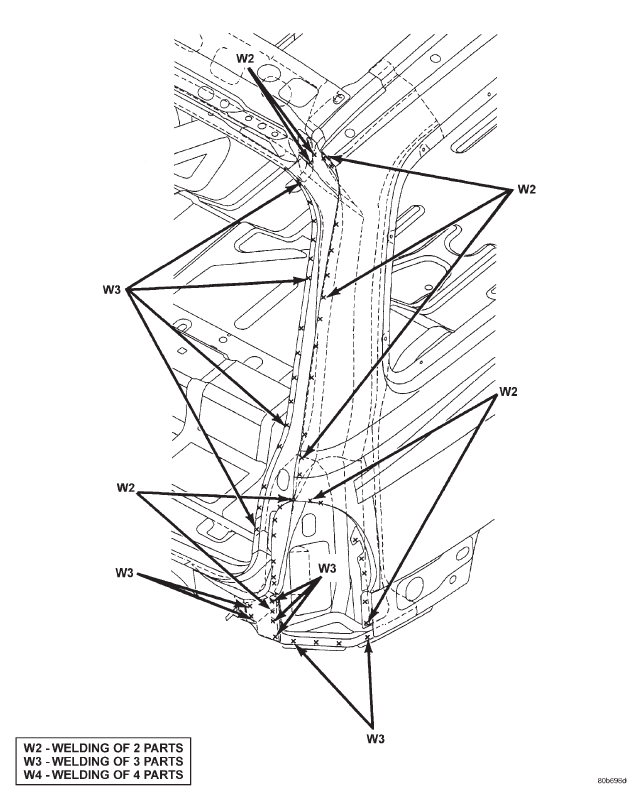

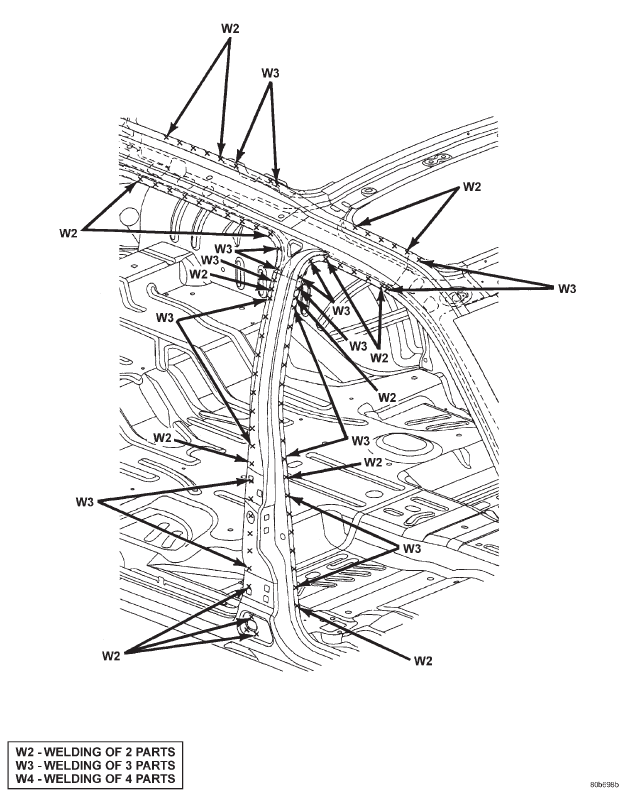

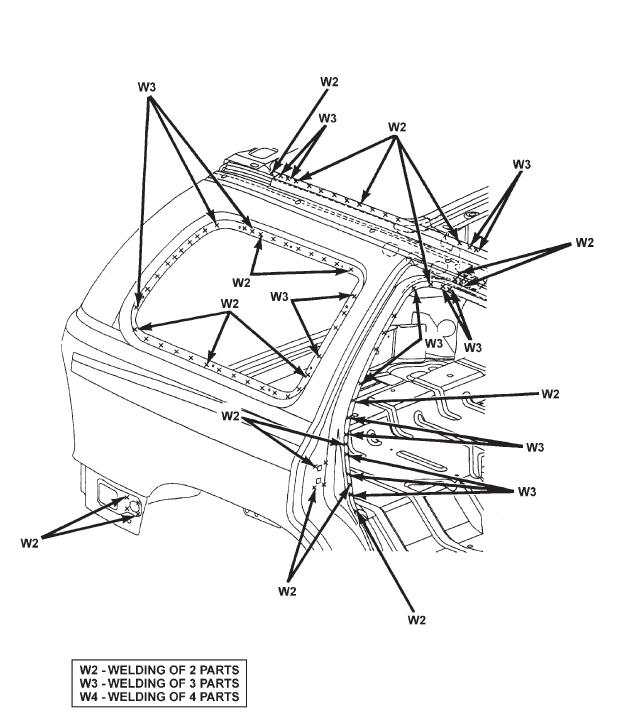

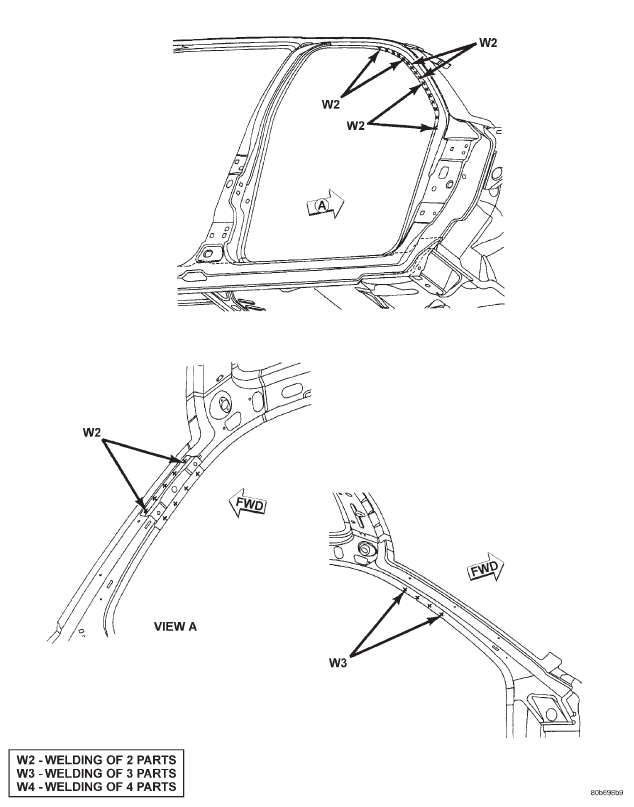

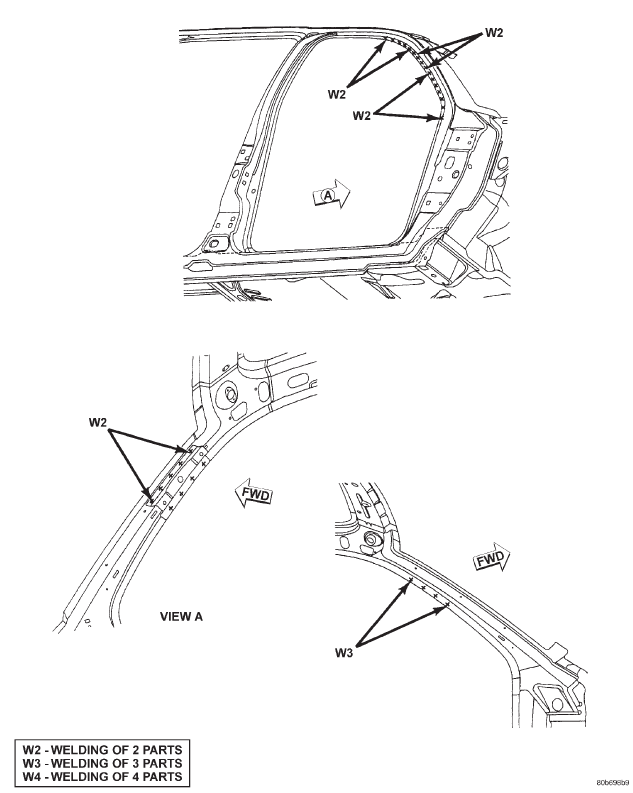

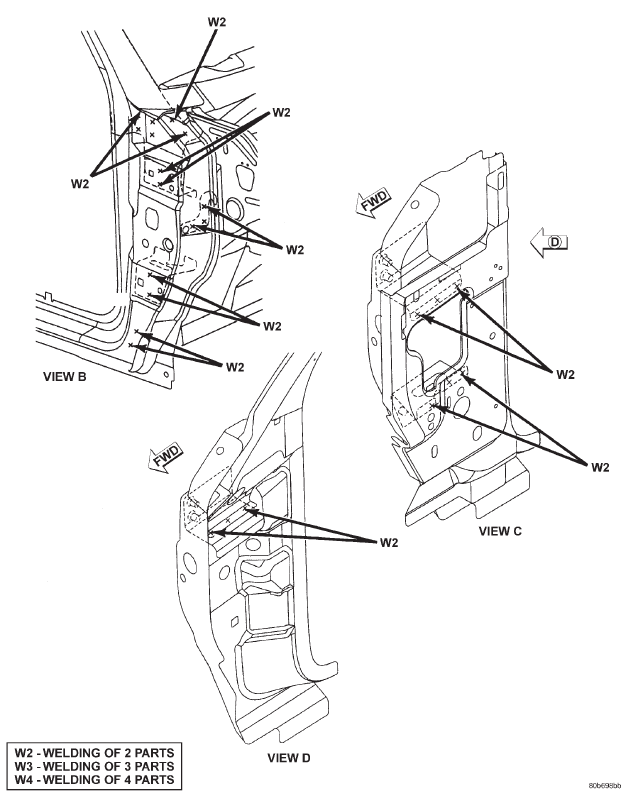

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

BODY SIDE APERTURE

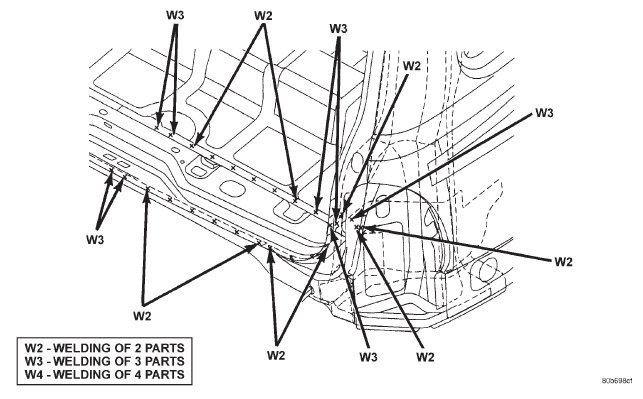

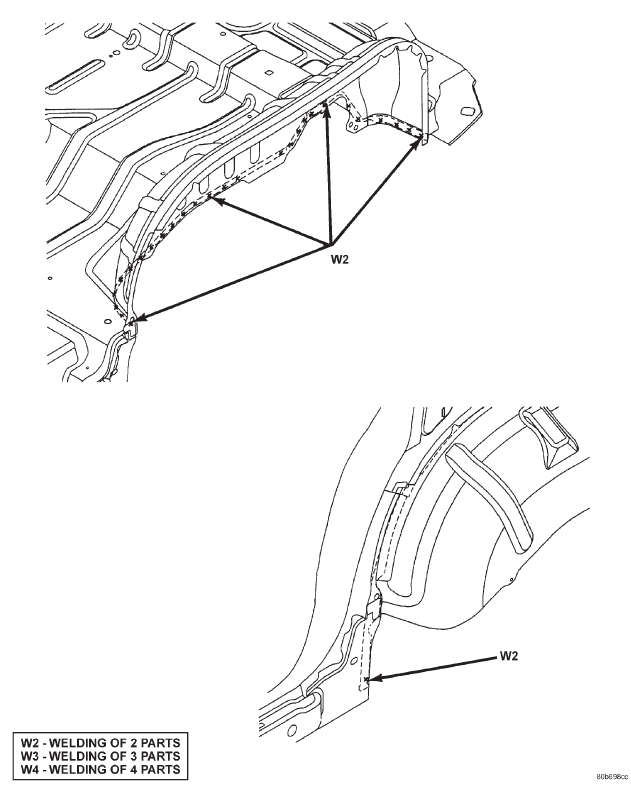

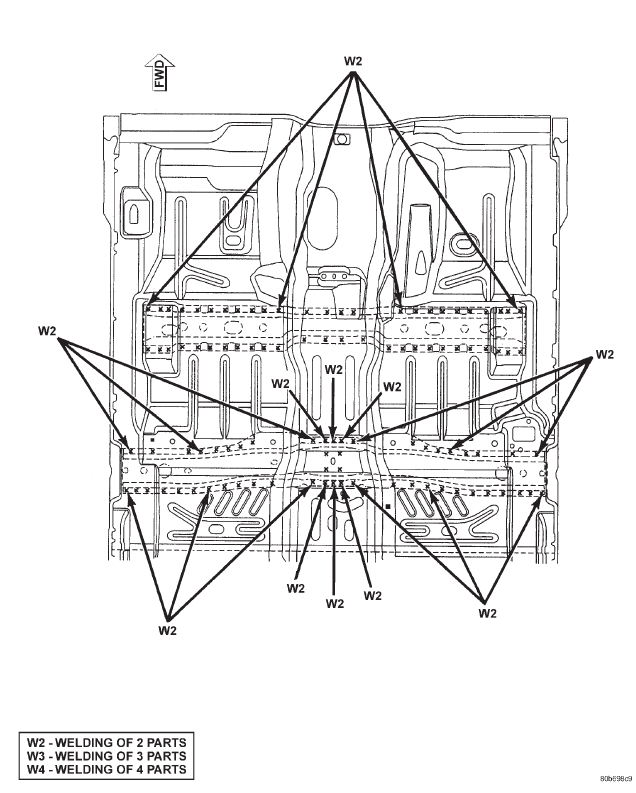

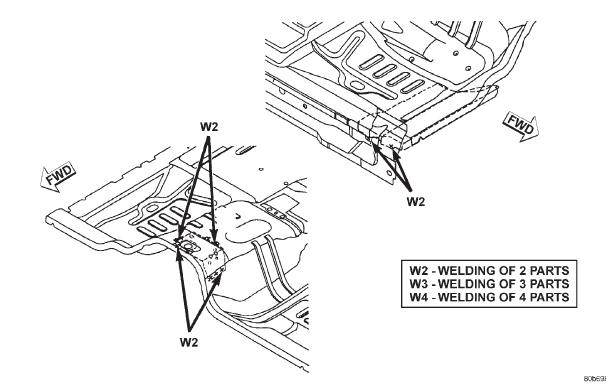

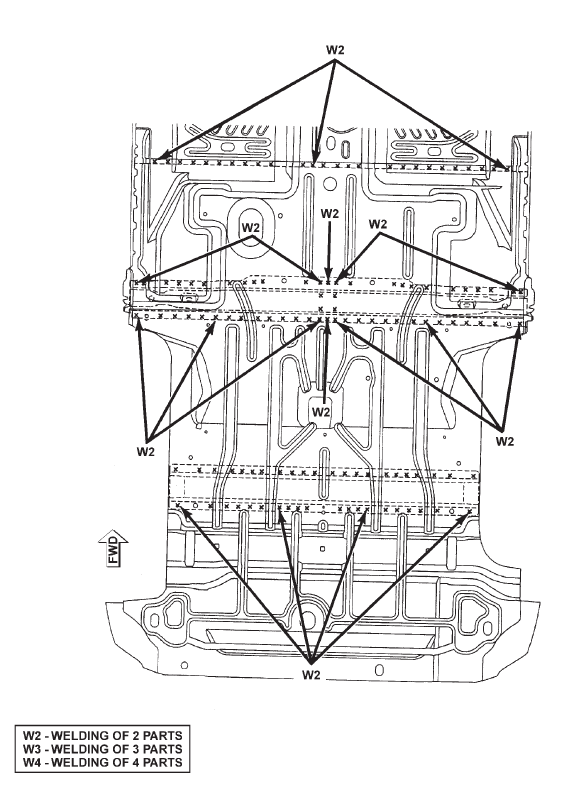

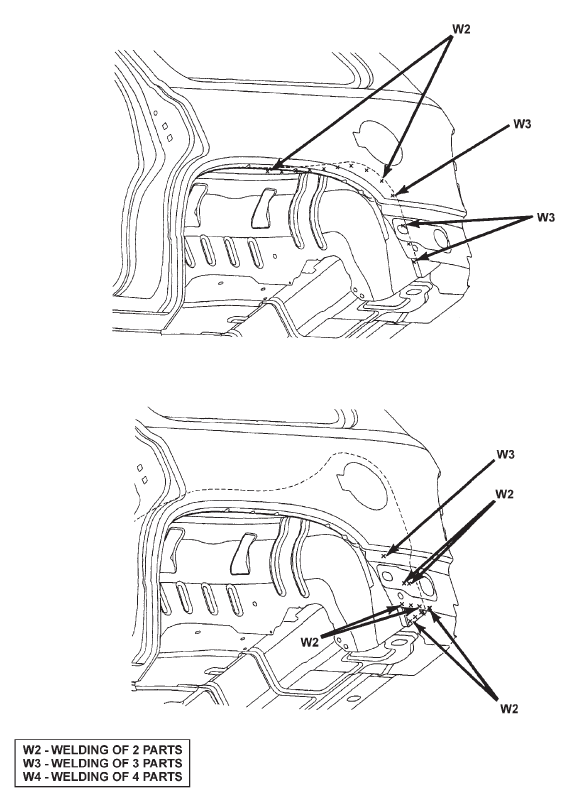

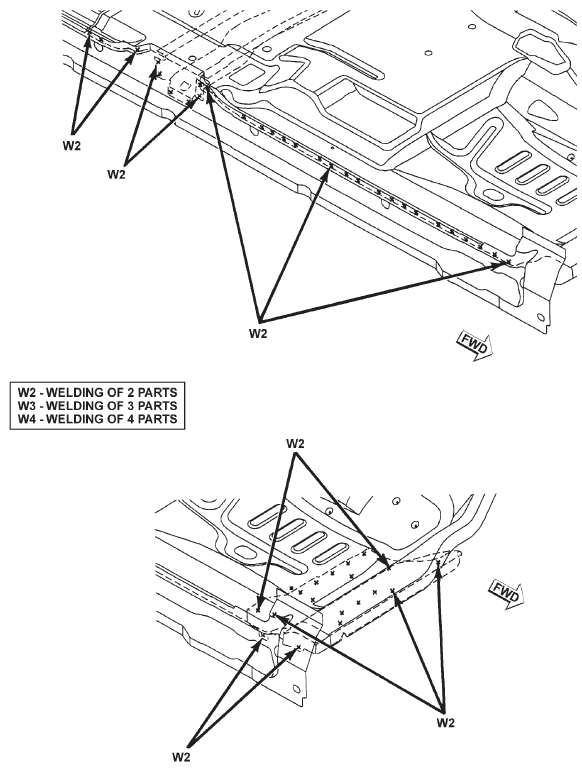

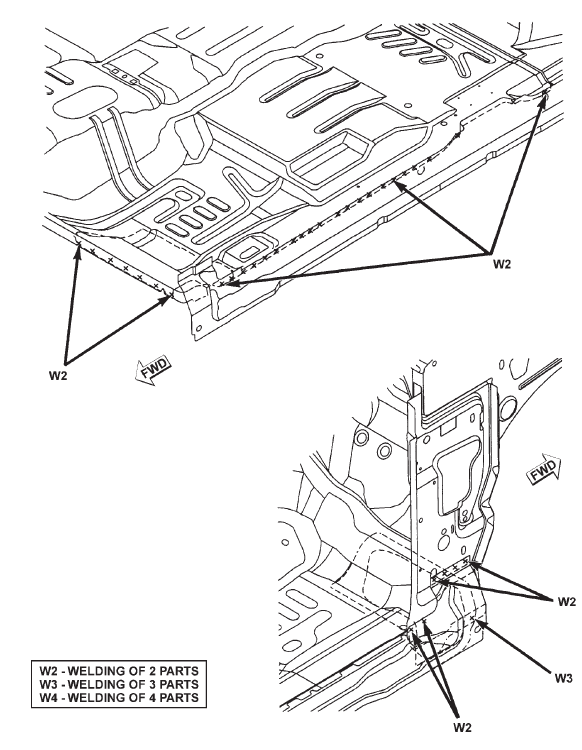

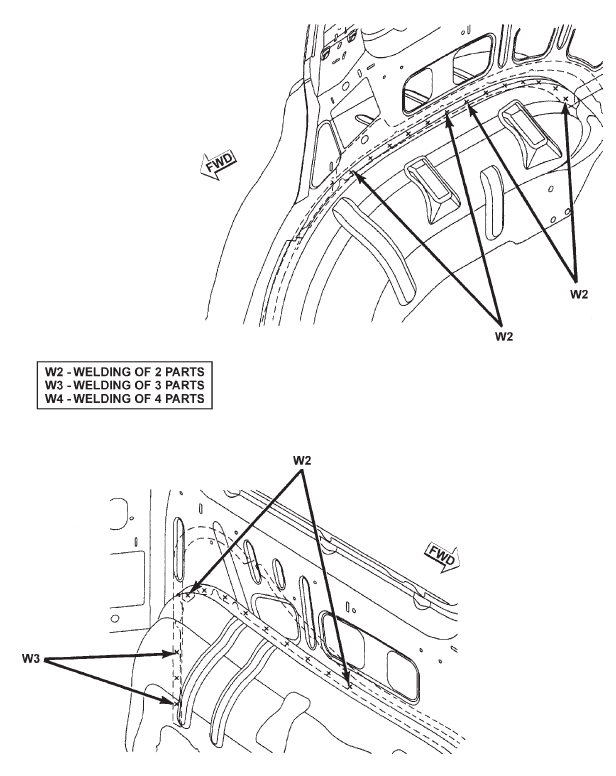

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

FLOOR PAN

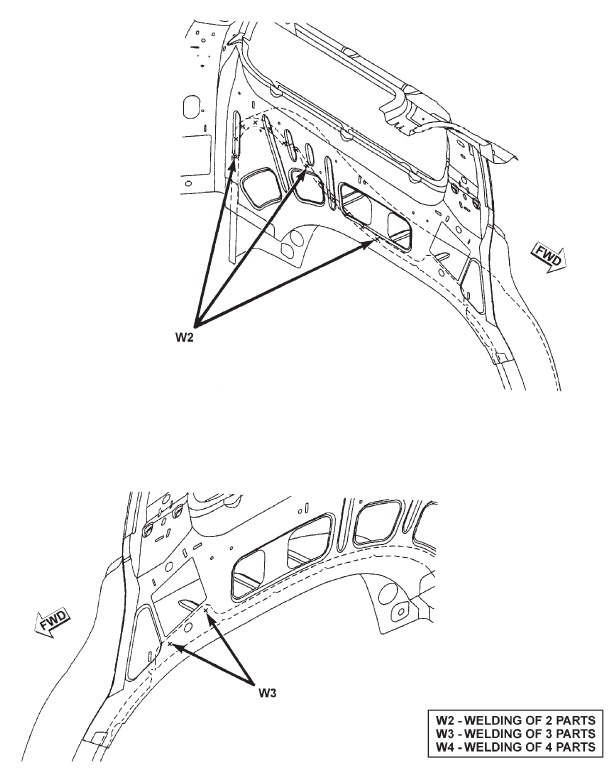

LIFTGATE OPENING

LIFTGATE OPENING

LIFTGATE OPENING

LIFTGATE OPENING

LIFTGATE OPENING

LIFTGATE OPENING

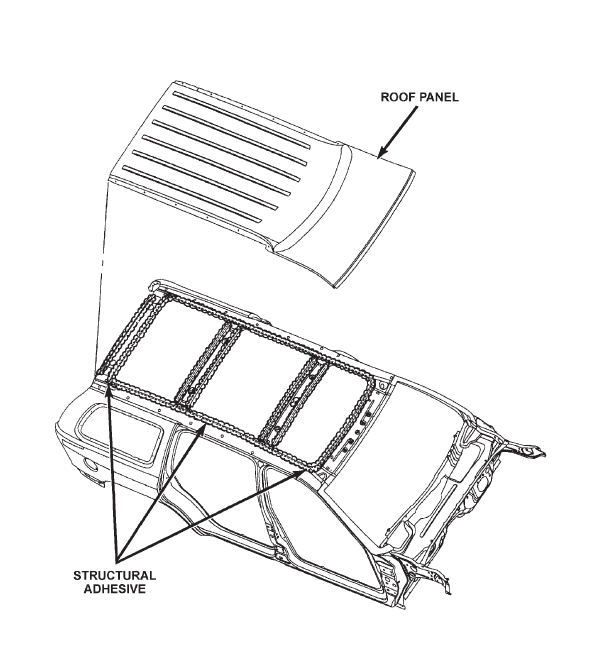

Structural adhesive locations

Structural adhesive locations

Body sealing locations
