Thermostat-5.2L/5.9L engines. Thermostat-4.7L engine

Thermostat-5.2L/5.9L engines

DESCRIPTION

CAUTION: Do not operate an engine without a thermostat, except for servicing or testing.

The thermostat on all gas powered engines is located beneath the thermostat housing at the front of the intake manifold (Fig. 4).

The thermostat is a wax pellet driven, reverse poppet choke type.

Coolant leakage into the pellet container will cause the thermostat to fail in the open position. Thermostats very rarely stick. Do not attempt to free a thermostat with a prying device.

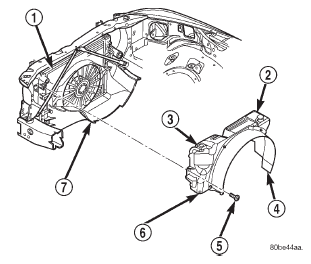

Fig. 3 Upper Fan Shroud with Integral Coolant Reserve/Overflow System

1 - RADIATOR

2 - WASHER FLUID RESERVOIR

3 - COOLANT OVERFLOW/RESERVOIR

4 - FAN SHROUD (UPPER)

5 - SCREW

6 - INTERLOCKING PINS

7 - FAN SHROUD (LOWER)

The same thermostat is used for winter and summer seasons. An engine should not be operated without a thermostat, except for servicing or testing.

Operating without a thermostat causes longer engine warmup time, unreliable warmup performance, increased exhaust emissions and crankcase condensation that can result in sludge formation.

OPERATION

The wax pellet is located in a sealed container at the spring end of the thermostat. When heated, the pellet expands, overcoming closing spring tension and water pump pressure to force the valve to open.

Thermostat-4.7L engine

DESCRIPTION

CAUTION: Do not operate an engine without a thermostat, except for servicing or testing.

A pellet-type thermostat controls the operating temperature of the engine by controlling the amount of coolant flow to the radiator. On all engines the thermostat is closed below 195F (90C). Above this temperature, coolant is allowed to flow to the radiator.

This provides quick engine warm up and overall temperature control. On the 4.7L engine the thermostat is designed to block the flow of the coolant bypass journal by 50% instead of completely blocking the flow. This design controls coolant temperature more accurately (Fig. 5).

The same thermostat is used for winter and summer seasons. An engine should not be operated without a thermostat, except for servicing or testing.

Operating without a thermostat causes other problems.

These are: longer engine warmup time, unreliable warmup performance, increased exhaust emissions and crankcase condensation. This condensation can result in sludge formation.

Fig. 4 Thermostat-Typical

OPERATION

The wax pellet is located in a sealed container at the spring end of the thermostat. When heated, the pellet expands, overcoming closing spring tension and water pump pressure to force the valve to open.
