Lamps » Lamp service » Removal and installation
Tail, brake, turn signal and back-up lamp

REMOVAL

(1) Release liftgate latch and open liftgate.

(2) Remove screws attaching tail, brake, turn signal and back-up lamp to liftgate opening (Fig. 7).

(3) Separate inner end of lamp from quarter panel.

(4) Disengage hook holding outer end of lamp to quarter panel opening.

(5) Separate lamp from quarter panel.

(6) Disengage positive lock on wire connector (Fig.

8).

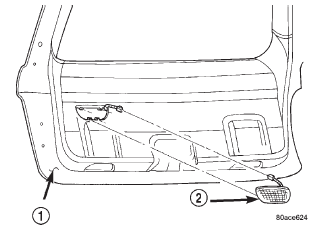

Fig. 6 Liftgate/Cargo Lamp Fig. 6 Liftgate/Cargo Lamp

1 - LIFTGATE

2 - LIFTGATE LAMP

(7) Depress lock tab on the side of the body harness connector.

(8) Disengage wire connector from tail lamp circuit board.

(9) Separate tail lamp from vehicle.

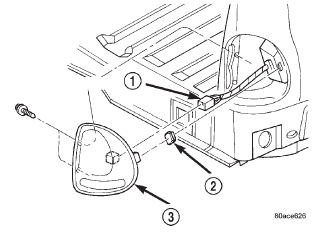

Fig. 7 Tail, Brake, Turn Signal and Back-up Lamp Fig. 7 Tail, Brake, Turn Signal and Back-up Lamp

1 - CONNECTOR

2 - GROMMET

3 - TAIL LAMP

INSTALLATION

(1) Place tail lamp in position on vehicle.

(2) Engage wire connector into tail lamp circuit board.

(3) Engage positive lock on wire connector.

(4) Place lamp in position in position on quarter panel.

(5) Engage hook to hold outer end of lamp to quarter panel opening.

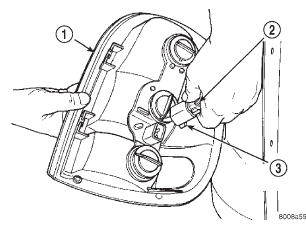

Fig. 8 Tail Lamp Connector Fig. 8 Tail Lamp Connector

1 - TAIL, STOP AND TURN SIGNAL LAMP

2 - WIRE CONNECTOR

3 - POSITIVE LOCK

(6) Position inner end of lamp into quarter panel.

(7) Install screws attaching tail, stop, turn signal and back-up lamp to liftgate opening.
