Ignition System
Specifications

Ignition timing

Ignition timing is not adjustable on any engine.

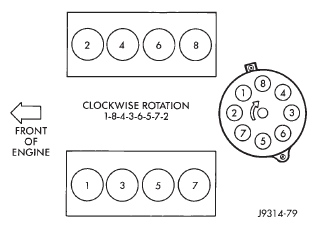

Engine firing order-5.2L/5.9L v-8 engines

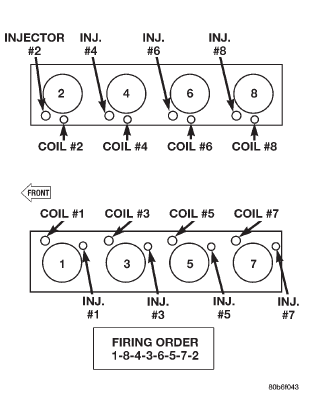

Engine firing order-4.7L v-8 engine

Engine firing order-4.7L v-8 engine

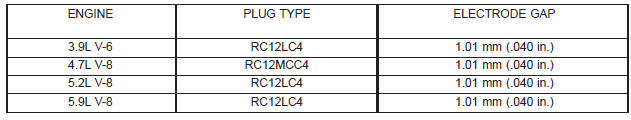

Spark plugs

Spark plugs

Spark plug cable resistance

Spark plug cable resistance

Ignition coil resistance-except 4.7L engine

Ignition coil resistance-except 4.7L engine

Ignition coil resistance-4.7L v-8 engine

Ignition coil resistance-4.7L v-8 engine

Torque chart

Torque chart

DESCRIPTION    TORQUE

Camshaft Position Sensor

Bolt-4.7L V-8 Engine . . . . 12 N*m (106 in. lbs.)

Crankshaft Position Sensor- 3.9L/5.2L/5.9L Engines . . . . . . 8 N*m (70 in. lbs.)

Crankshaft Position Sensor Bolt-4.7L V-8 Engine . . . . . . 28 N*m (21 ft. lbs.)

Distributor Hold Down Bolt . . . 23 N*m (17 ft. lbs.)

Ignition Coil Mounting (except 4.7L) (if tapped bolts are used) . . . . 5 N*m (50 in. lbs.)

Ignition Coil Mounting (except 4.7L) (if nuts/bolts are used) . . . . 11 N*m (100 in. lbs.)

Ignition Coil Mounting Nut-4.7L V-8 Engine . . . . . . 8 N*m (70 in. lbs.)

Spark Plugs-Except 4.7L . . . . . . . . . . . 35-41 N*m (26-30 ft. lbs.)

Spark Plugs-4.7L V-8 Engine . . . . . . . . . . 27 N*m (20 ft. lbs.)
