Frame and Bumpers » Removal and installation
Specifications

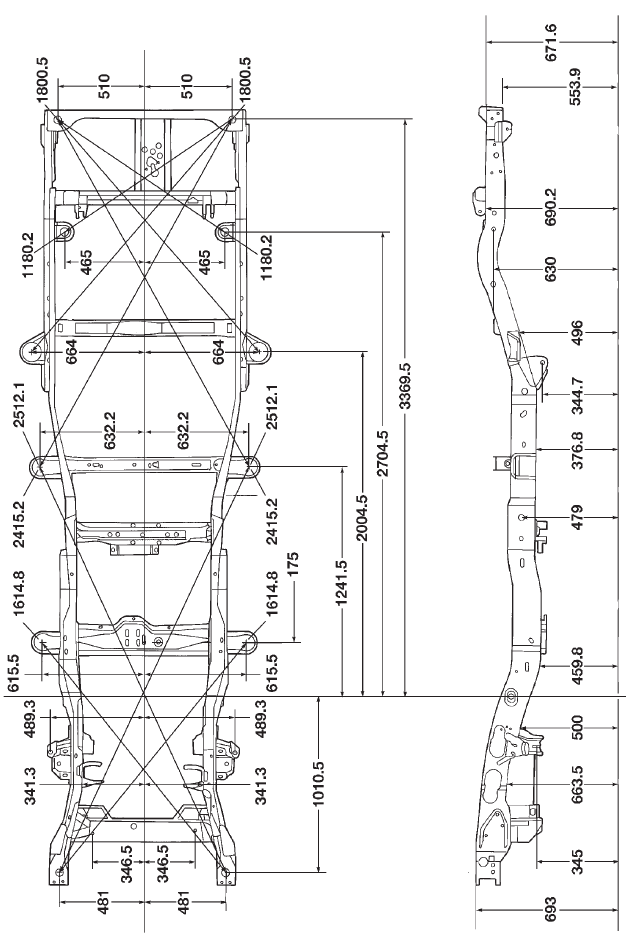

Frame dimensions

FRAME

All dimensions are listed in millimeters.

Torque specifications

Torque specifications

TORQUE SPECIFICATIONS

DESCRIPTION     TORQUE

Front axle skid plate-to-front x-member bolt . . . . . . . . . . . . 23 N*m (17 ft. lbs.)

Front axle skid plate-to-trans x-member bolt . . . . . . . . . . . . 23 N*m (17 ft. lbs.)

Front bumper brkt-to-frame nut . . . . . . . . . 94 N*m (70 ft. lbs.)

Front bumper outer brace bolt . . . . . . . . . . 94 N*m (70 ft. lbs.)

Fuel tank skid plate-to-frame rail bolt . . . . 23 N*m (17 ft. lbs.)

Fuel tank skid plate-to-x-member screw . . . 41 N*m (30 ft. lbs.)

Rear bumper bracket-to-frame nut . . . . . . . 54 N*m (40 ft. lbs.)

Spare tire winch bolt . . . . . . . . . 18 N*m (13 ft. lbs.)

Transfer case skid plate-to-x-member bolt . . . . . 23 N*m (17 ft. lbs.)

Trailer hitch nut . . . . . . . . . . . 108 N*m (80 ft. lbs.)
