Audio Systems » Removal and installation
Speaker

REMOVAL

FRONT DOOR UPPER SPEAKER

(1) Disconnect and isolate the battery negative cable.

(2) Remove the trim panel from the front door.

Refer to Front Door Trim Panel in the Removal and Installation section of Group 23 - Body for the procedures.

(3) Disconnect the door wire harness connector from the front door upper speaker wire harness connector (Fig. 7).

(4) Remove the two screws that secure the front door upper speaker to the back of the trim panel.

(5) Remove the front door upper speaker from the trim panel.

FRONT DOOR LOWER SPEAKER

(1) Disconnect and isolate the battery negative cable.

(2) Remove the trim panel from the front door.

Refer to Front Door Trim Panel in the Removal and Installation section of Group 23 - Body for the procedures.

(3) Remove the three screws that secure the speaker to the front door inner panel (Fig. 8).

Fig. 7 Front Door Upper Speaker Remove/Install Fig. 7 Front Door Upper Speaker Remove/Install

1 - POWER MIRROR SWITCH

2 - TWEETER

3 - POWER WINDOW SWITCH

4 - WIRE HARNESS CONNECTOR

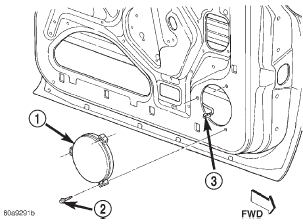

Fig. 8 Front Door Lower Speaker Remove/Install Fig. 8 Front Door Lower Speaker Remove/Install

1 - SPEAKER

2 - SCREW

3 - CONNECTOR

(4) Pull the speaker away from the mounting hole in the front door inner panel far enough to access the wire harness connector.

(5) Disconnect the front door wire harness connector from the speaker connector receptacle.

(6) Remove the speaker from the front door inner panel.

REAR DOOR SPEAKER

(1) Disconnect and isolate the battery negative cable.

(2) Remove the trim panel from the rear door.

Refer to Rear Door Trim Panel in the Removal and Installation section of Group 23 - Body for the procedures.

(3) Remove the three screws that secure the speaker to the rear door inner panel (Fig. 9).

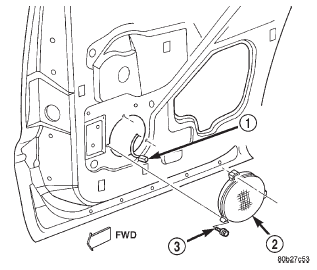

Fig. 9 Rear Door Speaker Remove/Install Fig. 9 Rear Door Speaker Remove/Install

1 - WIRE HARNESS CONNECTOR

2 - SPEAKER

3 - SCREW

(4) Pull the speaker away from the mounting hole in the rear door inner panel far enough to access the wire harness connector.

(5) Disconnect the rear door wire harness connector from the speaker connector receptacle.

(6) Remove the speaker from the rear door inner panel.

INSTALLATION

FRONT DOOR UPPER SPEAKER

(1) Position the front door upper speaker to the back of the trim panel.

(2) Install and tighten the two screws that secure the front door upper speaker to the trim panel.

Tighten the screws to 2 N*m (17 in. lbs.).

(3) Reconnect the door wire harness connector to the front door upper speaker wire harness connector.

(4) Install the trim panel onto the front door. Refer to Front Door Trim Panel in the Removal and Installation section of Group 23 - Body for the procedures.

(5) Reconnect the battery negative cable.

FRONT DOOR LOWER SPEAKER

(1) Inspect the terminals in the speaker connector receptacle and in the door wire harness connector for corrosion. Clean or replace the terminals as required.

(2) Push a small amount of grease (Lithium Extreme Pressure - Number 2 Grade or equivalent) into the cavities of the door wire harness connector for the speaker.

(3) Position the speaker to the front door inner panel.

(4) Reconnect the front door wire harness connector to the speaker connector receptacle.

(5) Position the speaker into the mounting hole in the front door inner panel.

(6) Install and tighten the three screws that secure the speaker to the front door inner panel. Tighten the screws to 2 N*m (17 in. lbs.).

(7) Install the trim panel onto the front door. Refer to Front Door Trim Panel in the Removal and Installation section of Group 23 - Body for the procedures.

(8) Reconnect the battery negative cable.

REAR DOOR SPEAKER

(1) Inspect the terminals in the speaker connector receptacle and in the door wire harness connector for corrosion. Clean or replace the terminals as required.

(2) Push a small amount of multipurpose grease (Lithium Extreme Pressure - Number 2 Grade or equivalent) into the cavities of the door wire harness connector for the speaker.

(3) Position the speaker to the rear door inner panel.

(4) Reconnect the rear door wire harness connector to the speaker connector receptacle.

(5) Position the speaker into the mounting hole in the rear door inner panel.

(6) Install and tighten the three screws that secure the speaker to the rear door inner panel. Tighten the screws to 2 N*m (17 in. lbs.).

(7) Install the trim panel onto the rear door. Refer to Rear Door Trim Panel in the Removal and Installation section of Group 23 - Body for the procedures.

(8) Reconnect the battery negative cable.
