Removal and installation

Power mirror switch

(1) Disconnect and isolate the battery negative cable.

(2) Pull the power mirror switch control knob rearward to remove it from the switch stem (Fig. 4).

(3) Remove the nut that secures the power mirror switch to the driver side door trim panel (Fig. 5).

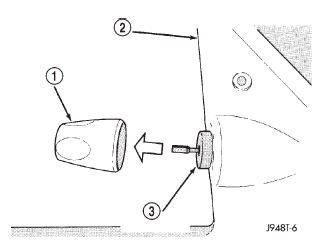

Fig. 4 Power Mirror Switch Control Knob Remove/ Install - Typical

1 - SWITCH CONTROL KNOB

2 - DOOR TRIM PANEL

3 - POWER MIRROR SWITCH

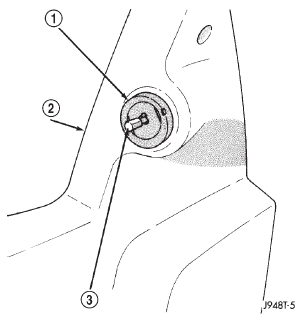

Fig. 5 Power Mirror Switch Nut - Typical

1 - SWITCH RETAINING NUT

2 - DOOR TRIM PANEL

3 - POWER MIRROR SWITCH

(4) Remove the trim panel from the inside of the driver side front door. Refer to Group 23 - Body for the procedures.

(5) Pull the trim panel away from the inner door panel far enough to access the power mirror switch wire harness connector.

(6) Unplug the power mirror switch wire harness connector (Fig. 6).

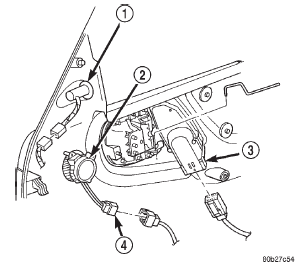

Fig. 6 Door Trim Panel Wire Harness Connectors

1 - POWER MIRROR SWITCH

2 - TWEETER

3 - POWER WINDOW SWITCH

4 - WIRE HARNESS CONNECTOR

(7) Remove the power mirror switch from the back of the door trim panel.

(8) Reverse the removal procedures to install.

Power mirror

(1) Disconnect and isolate the battery negative cable.

(2) Remove the trim panel from the inside of the front door. Refer to Group 23 - Body for the procedures.

(3) Remove the mirror flag seal from the inner door panel (Fig. 7).

(4) Unplug the wire harness connector from the power mirror (Fig. 8).

(5) Remove the three nuts that secure the power mirror to the inner door panel.

(6) Unseat the power mirror wire harness grommet by pushing it out through the hole in the door flag from the inside.

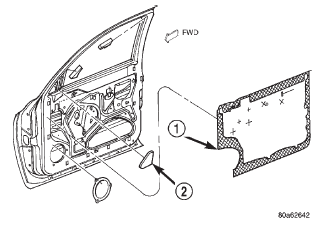

Fig. 7 Mirror Flag Seal Remove/Install

1 - WATER DAM

2 - MIRROR FLAG SEAL

Fig. 8 Power Mirror Remove/Install

1 - ELECTRIC FOLD AWAY SIDEVIEW MIRROR

2 - DOOR

3 - ELECTRIC SIDEVIEW MIRROR

(7) Pull the mirror from the outside of the door while feeding the wire harness, grommet, and connector out through the hole from the inside of the door.

(8) Reverse the removal procedures to install.

Tighten the mounting nuts to 7.5 N*m (65 in. lbs.).
