Park, turn signal and side marker lamp

REMOVAL

(1) Remove torx screw attaching park lamp to headlamp module (Fig. 3).

(2) Pull the park and turn signal lamp outward and separate from headlamp module.

(3) Remove park and turn signal sockets from back of lamp (Fig. 4).

(4) Remove side marker socket from back of lamp.

(5) Separate park and turn signal lamp from vehicle.

INSTALLATION

(1) Install side marker socket in back of lamp.

(2) Install park and turn signal sockets in back of lamp.

(3) Using the guides on the bottom and side of the headlamp module, align the park and turn signal lamp under headlamp module.

(4) Slide the park and turn signal lamp inward under headlamp module. Push firmly until the lamp is seated.

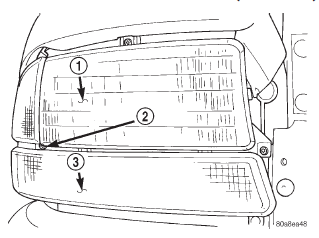

Fig. 3 Park Lamp Screw Fig. 3 Park Lamp Screw

1 - HEADLAMP

2 - HIDDEN SCREW

3 - PARK LAMP

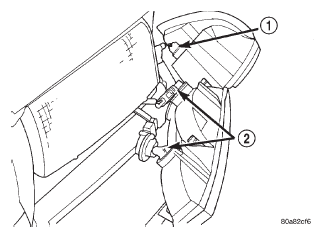

Fig. 4 Park, Turn Signal And Side Marker Lamp Fig. 4 Park, Turn Signal And Side Marker Lamp

1 - SIDE MARKER LAMP BULB

2 - PARK/TURN SIGNAL LAMP BULB

(5) Install screw attaching park lamp to headlamp module.
