Brakes » Base brake system » Removal and installation
Park brake pedal assembly

Removal

(1) Remove left side kick panel.

(2) Remove brake release rod from pedal assembly (Fig. 39).

(3) Disconnect brake warning lamp switch.

(4) Remove front parking brake cable.

(5) Remove mounting nuts and mounting bolt.

(6) Slide assembly rearward off the mounting studs (Fig. 39).

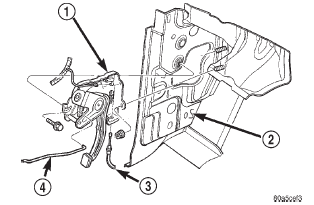

Fig. 39 Parking Brake Pedal Assembly Fig. 39 Parking Brake Pedal Assembly

1 - PARKING BRAKE ASSEMBLY

2 - LEFT COWL PANEL

3 - FRONT CABLE

4 - RELEASE ROD

Installation

(1) Install assembly on the mounting studs.

(2) Install mounting bolt and nuts.

(3) Install front parking brake cable.

(4) Connect brake warning lamp switch.

(5) Install brake release rod to pedal assembly.

(6) Install left side kick panel.
