Things to know before starting your vehicle » Occupant restraint systems » Child Restraints
LATCH Positions For Installing Child Restraints In This Vehicle

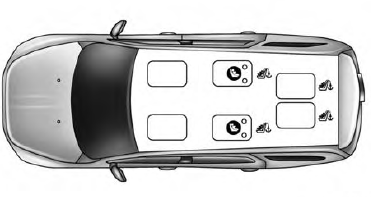

60/40 Second Row (7 Passenger) 60/40 Second Row (7 Passenger)

  • anchorages per Lower Anchorage Symbol 2 anchorages per seating position
  • Top Tether Anchorage Symbol

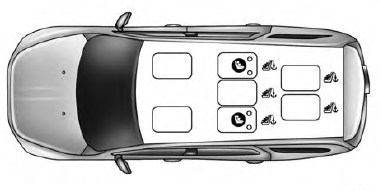

Captain's Chairs Second Row (6 Passenger) Captain's Chairs Second Row (6 Passenger)

  • anchorages per seating Lower Anchorage Symbol 2 anchorages per seating position
  • Top Tether Anchorage Symbol

Frequently Asked Questions About Installing Child Restraints With LATCH

What is the weight limit (child's weight + weight of the child restraint) for using the LATCH anchorage system to attach the child restraint? 65 lbs (29.5 kg) Use the LATCH anchorage system until the combined weight of the child and the child restraint is 65 lbs (29.5 kg). Use the seat belt and tether anchor instead of the LATCH system once the combined weight is more than 65 lbs (29.5 kg).
Can the LATCH anchorages and the seat belt be used together to attach a rearfacing or forward-facing child restraint? No Do not use the seat belt when you use the LATCH anchorage system to attach a rearfacing or forward-facing child restraint.
Can a child seat be installed in the center position using the inner LATCH lower anchorages? N/A - 6 Passenger No - 7 Passenger 7 Passenger: Use the seat belt and tether anchor to install a child seat in the center seating position.
Can two child restraints be attached using a common lower LATCH anchorage? No Never "share" a LATCH anchorage with two or more child restraints. If the center position does not have dedicated LATCH lower anchorages, use the seat belt to install a child seat in the center position next to a child seat using the LATCH anchorages in an outboard position.
Can the rear-facing child restraint touch the back of the front passenger seat? Yes The child seat may touch the back of the front passenger seat if the child restraint manufacturer also allows contact. See your child restraint owner's manual for more information
Can the head restraints be removed? No - 6 Passenger Yes - 7 Passenger 7 Passenger: Only the head restraint in the center position may be removed
