Lamp systems

REMOVAL AND INSTALLATION

DAYTIME RUNNING LAMP MODULE (DRLM)

REMOVAL

The Daytime Running Lamp Module is located on the left inner fender.

(1) Remove the bolt attaching the module to the inner fender (Fig. 1).

(2) Disconnect the electrical connector.

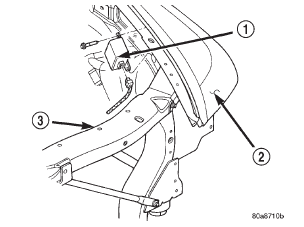

Fig. 1 Daytime Running Lamp Module

1 - DAYTIME RUNNING LAMP MODULE

2 - LEFT FENDER

3 - RADIATOR CLOSURE PANEL

INSTALLATION

(1) Connect the electrical connector.

(2) Insert the tab on the DRLM into the slot on the left inner fender.

(3) Install the bolt attaching the module to the left inner fender.
