Suspension » Front suspension - 4x4 » Removal and installation
Hub/bearing

REMOVAL

(1) Raise and support vehicle.

(2) Remove wheel and tire assembly.

(3) Remove axle nut.

(4) Remove ABS wheel speed sensor if equipped, refer to Group 5 Brakes.

(5) Remove the brake caliper and rotor, refer to Group 5 Brakes.

(6) Remove hub/bearing mounting bolts from the steering knuckle (Fig. 14).

(7) Slid hub/bearing out of the steering knuckle and off the axle.

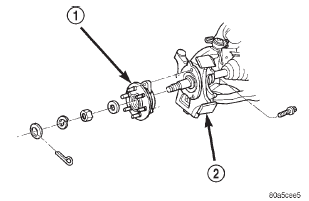

Fig. 14 Hub/Bearing Fig. 14 Hub/Bearing

1 - HUB BEARING

2 - STEERING KNUCKLE

INSTALLATION

(1) Install the hub/bearing into the steering knuckle and tighten the bolts to 166 N*m (123 ft.

lbs.).

(2) Install the brake rotor and caliper.

(3) Install ABS wheel speed sensor if equipped.

(4) Install axle nut and tighten to 235 N*m (173 ft.

lbs.) and install cotter pin.

(5) Install wheel and tire assembly.

(6) Remove support and lower vehicle.
