Headlamp

REMOVAL

(1) Open hood.

(2) Remove the bolts attaching headlamp to the inner fender panel (Fig. 1).

(3) Grasp the headlamp and firmly pull the headlamp to disengage it from the panel.

(4) Disengage the connector from the headlamp bulb.

(5) Separate bulb from headlamp.

(6) Remove the bulb sockets from the front park/ turn signal/side marker lamps (7) Separate headlamp module from vehicle.

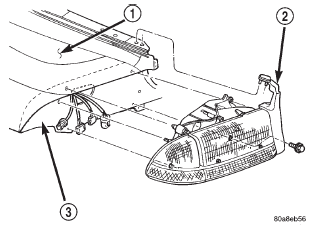

Fig. 1 Headlamp Fig. 1 Headlamp

1 - FENDER

2 - SEAL

3 - INNER FENDER

INSTALLATION

CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.

(1) Install bulb sockets for the front park/turn signal/ side marker lamps (2) Engage the connector to the headlamp bulb.

(3) Position headlamp in inner fender panel and firmly push headlamp inward to lock into place.

(4) Install the bolts attaching headlamp to the panel.
