Frame and Bumpers » Removal and installation
Fuel tank skid plate-4wd vehicles

REMOVAL

(1) Position a support under skid plate.

(2) Remove inboard screws that attach skid plate to crossmember.

(3) Remove bolts that attach skid plate to frame side rail (Fig. 5).

(4) Remove support and skid plate from vehicle.

INSTALLATION

(1) Position and support skid plate under fuel tank.

(2) Install inboard screws attaching skid plate to crossmember. Tighten screws to 41 N*m (30 ft. lbs.) torque.

(3) Install bolts attaching skid plate to frame side rail. Tighten bolts to 23 N*m (17 ft. lbs.) torque.

(4) Remove support from under skid plate.

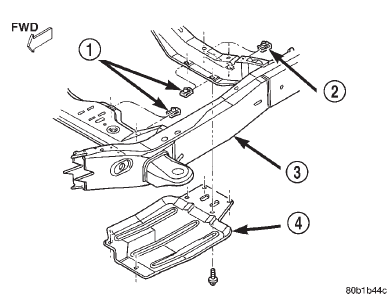

Fig. 4 Transfer Case Skid Plate Fig. 4 Transfer Case Skid Plate

1 - U-NUT

2 - U-NUT

3 - FRAME

4 - SKID PLATE

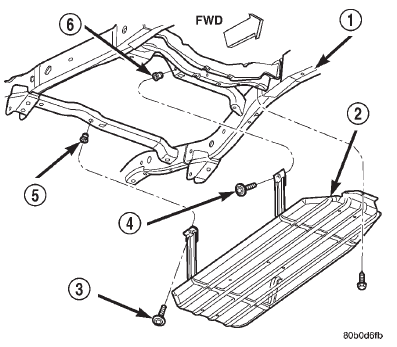

Fig. 5 Fuel Tank Skid Plate-4WD Vehicles Fig. 5 Fuel Tank Skid Plate-4WD Vehicles

1 - FRAME

2 - SKID PLATE

3 - SCREW

4 - SCREW

5 - RIV-NUT

6 - RIV-NUT

    More about «Removal and installation»:

    Front axle skid plate

    Transfer case skid plate

    Fuel tank skid plate-4wd vehicles

    Spare tire winch

    Trailer hitch

    Specifications
