Transmission and Transfer Case » Disassembly and assembly
Front clutch

NOTE: The 42RE transmission uses four plates and discs for the front clutch. The 44RE uses five plates and discs for the front clutch. The front clutch retainer is not interchangeable between these transmissions.

DISASSEMBLY

(1) Remove waved snap ring and remove pressure plate, clutch plates and clutch discs (Fig. 209).

(2) Compress clutch piston spring with Compressor Tool C-3575-A (Fig. 210). Be sure legs of tool are seated squarely on spring retainer before compressing spring.

(3) Remove retainer snap ring and remove compressor tool.

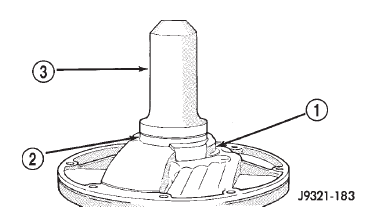

Fig. 208 Pump Oil Seal Installation Fig. 208 Pump Oil Seal Installation

1 - PUMP BODY

2 - PUMP SEAL

3 - SPECIAL TOOL C-4193

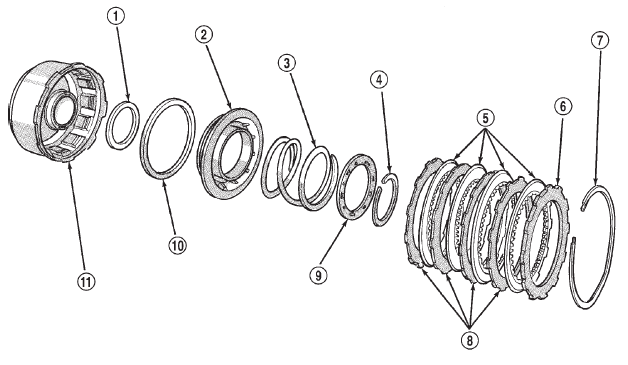

Fig. 209 42RE Front Clutch Components Fig. 209 42RE Front Clutch Components

1 - RETAINER HUB SEAL

2 - CLUTCH PISTON

3 - PISTON SPRING

4 - SPRING RETAINER SNAP RING

5 - CLUTCH DISCS

6 - PRESSURE PLATE

7 - SNAP RING (WAVED)

8 - CLUTCH PLATES

9 - SPRING RETAINER

10 - PISTON SEAL

11 - FRONT CLUTCH RETAINER

(4) Remove spring retainer and clutch spring. Note position of retainer on spring for assembly reference.

(5) Remove clutch piston from clutch retainer.

Remove piston by rotating it up and out of retainer.

(6) Remove seals from clutch piston and clutch retainer hub. Discard both seals as they are not reusable.

Fig. 210 Compressing Front Clutch Piston Spring Fig. 210 Compressing Front Clutch Piston Spring

1 - FRONT CLUTCH SPRING

2 - COMPRESSOR TOOL C-3575-A

3 - RETAINER SNAP RING

4 - SPRING RETAINER

ASSEMBLY

(1) Soak clutch discs in transmission fluid while assembling other clutch parts.

(2) Install new seals on piston and in hub of retainer. Be sure lip of each seal faces interior of clutch retainer.

(3) Lubricate lips of piston and retainer seals with liberal quantity of Mopart Door Ease. Then lubricate retainer hub, bore and piston with light coat of transmission fluid.

(4) Install clutch piston in retainer (Fig. 211). Use twisting motion to seat piston in bottom of retainer.

CAUTION: Never push the clutch piston straight in.

This will fold the seals over causing leakage and clutch slip.

(5) Position spring in clutch piston (Fig. 212).

(6) Position spring retainer on top of piston spring (Fig. 213). Make sure retainer is properly installed. Small raised tabs should be facing upward. Semicircular lugs on underside of retainer are for positioning retainer in spring.

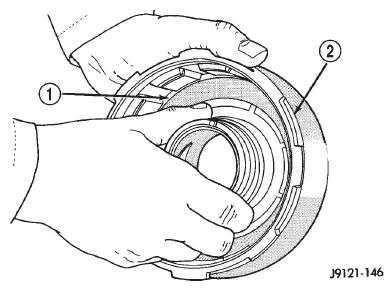

Fig. 211 Front Clutch Piston Installation Fig. 211 Front Clutch Piston Installation

1 - CLUTCH PISTON

2 - FRONT CLUTCH RETAINER

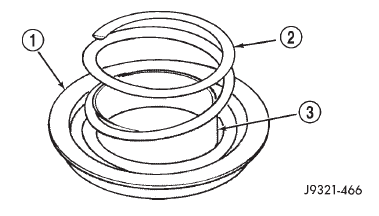

Fig. 212 Clutch Piston Spring Installation Fig. 212 Clutch Piston Spring Installation

1 - RETAINER

2 - CLUTCH SPRING

3 - PISTON

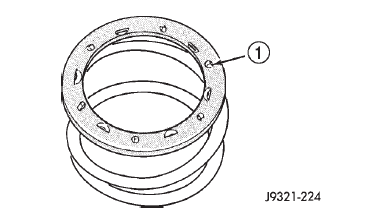

Fig. 213 Correct Spring Retainer Installed Position Fig. 213 Correct Spring Retainer Installed Position

1 - SMALL TABS ON RETAINER FACE UPWARD

(7) Compress piston spring and retainer with Compressor Tool C-3575-A (Fig. 210). Then install new snap ring to secure spring retainer and spring.

(8) Install clutch plates and discs (Fig. 209).

Install steel plate then disc until all plates and discs are installed. The front clutch uses 4 clutch discs and plates in a 42RE transmission. In a 44RE transmission 5 discs and plates are used.

(9) Install pressure plate and waved snap ring (Fig. 209).

Front clutch clearance specifications for the 42RE and 44RE transmission are the same.

Clearance should be 1.70 to 3.40 mm (0.067 to 0.134 in.). If clearance is incorrect, clutch discs, plates, pressure plates and snap ring may have to be changed.
