Frame and Bumpers » Removal and installation
Front axle skid plate

REMOVAL

(1) Position a support under skid plate.

(2) Remove bolts attaching skid plate to front crossmember (Fig. 2).

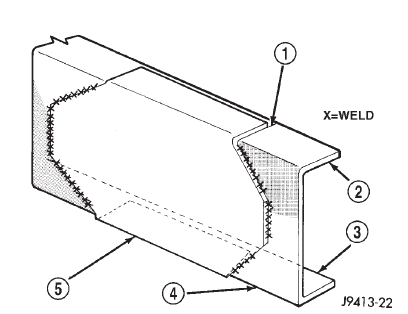

Fig. 1 Frame Reinforcement Fig. 1 Frame Reinforcement

1 - .250 IN FROM EDGE

2 - TOP FLANGE

3 - BOTTOM FLANGE

4 - FRAME RAIL

5 - FRAME REPAIR REINFORCEMENT

(3) Remove bolts attaching skid plate to skid plate crossmember (Fig. 3).

(4) Separate skid plate from the vehicle.

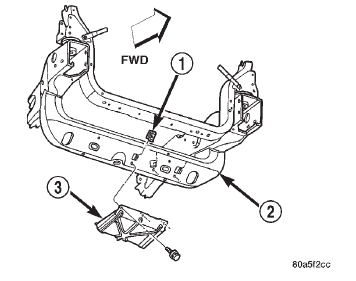

Fig. 2 Front Axle Skid Plate Fig. 2 Front Axle Skid Plate

1 - U-NUT

2 - FRAME

3 - SKID PLATE

INSTALLATION

(1) Position and support skid plate at front crossmember.

(2) Install bolts attaching skid plate to transmission crossmember. Tighten to 23 N*m (17 ft. lbs.) torque.

(3) Install bolts attaching skid plate to front crossmember.

Tighten to 23 N*m (17 ft. lbs.) torque.

(4) Remove support from under skid plate.

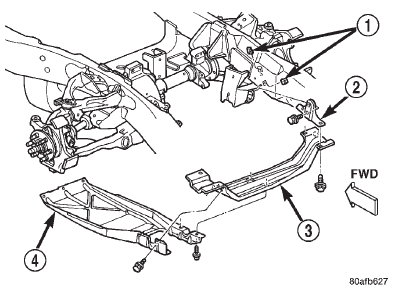

Fig. 3 Front Axle Skid Plate Fig. 3 Front Axle Skid Plate

1 - U-NUT

2 - BRACKET

3 - SKID PLATE CROSSMEMBER

4 - SKID PLATE
