Lamps » Lamp service » Removal and installation
Dome lamp

REMOVAL

(1) Using a small flat blade, pry the left side (driver's side) of the dome lamp lens downward from dome lamp.

(2) Allow the lens to hang down, this will disengage the right side of the lamp (passenger's side) from the headliner.

(3) Pull the right side of the lamp down and slide the lamp to the right.

(4) Separate the lamp from the headliner.

(5) Disengage dome lamp wire connector from body wire harness.

(6) Separate dome lamp from vehicle (Fig. 10) and (Fig. 11).

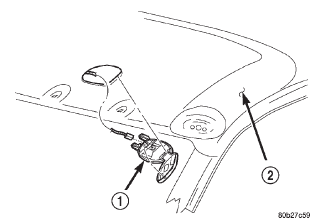

Fig. 10 Front Dome Lamp Fig. 10 Front Dome Lamp

1 - DOME LAMP

2 - HEADLINER

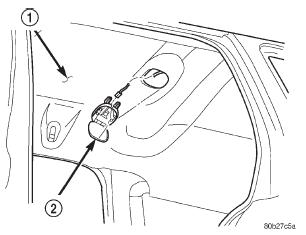

Fig. 11 Rear Dome Lamp Fig. 11 Rear Dome Lamp

1 - HEADLINER

2 - DOME LAMP

INSTALLATION

(1) Position dome lamp at headliner.

(2) Connect dome lamp wire connector to body wire harness.

(3) Position the left side of the lamp in the headliner opening and slide lamp to the left.

(4) Push the right side of the lamp in the headliner opening and push the lamp lens up into the lamp to secure.
