Engine » Cleaning and inspection
Cylinder block

CLEANING

Thoroughly clean the oil pan and engine block gasket surfaces.

Use compressed air to clean out:

  • The galley at the oil filter adaptor hole.
  • The front and rear oil galley holes.
  • The feed holes for the crankshaft main bearings.

Once the block has been completely cleaned, apply Loctite PST pipe sealant with Teflon 592 to the threads of the front and rear oil galley plugs. Tighten the plugs to 34 N*m (25 ft. lbs.) torque.

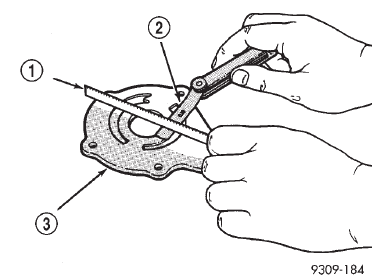

Fig. 137 Checking Oil Pump Cover Flatness Fig. 137 Checking Oil Pump Cover Flatness

1 - STRAIGHT EDGE

2 - FEELER GAUGE

3 - OIL PUMP COVER

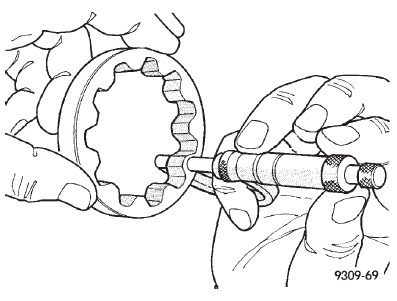

Fig. 138 Measuring Outer Rotor Thickness Fig. 138 Measuring Outer Rotor Thickness

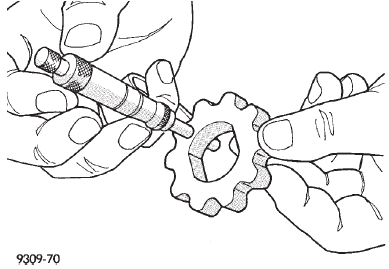

Fig. 139 Measuring Inner Rotor Thickness Fig. 139 Measuring Inner Rotor Thickness

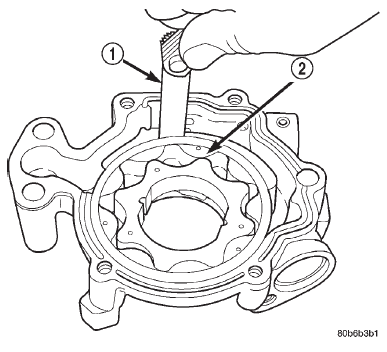

Fig. 140 Measuring Outer Rotor Clearance in Housing Fig. 140 Measuring Outer Rotor Clearance in Housing

1 - FEELER GAUGE

2 - OUTER ROTOR

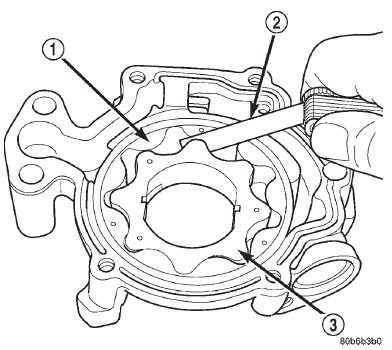

Fig. 141 Measuring Clearance Between Rotors Fig. 141 Measuring Clearance Between Rotors

1 - OUTER ROTOR

2 - FEELER GAUGE

3 - INNER ROTOR

INSPECTION

(1) It is mandatory to use a dial bore gauge to measure each cylinder bore diameter. To correctly select the proper size piston, a cylinder bore gauge, capable of reading in 0.003 mm (.0001 in.) INCREMENTS is required. If a bore gauge is not available, do not use an inside micrometer (Fig. 143).

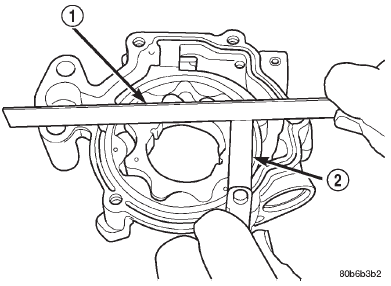

Fig. 142 Measuring Clearance Over Rotors Fig. 142 Measuring Clearance Over Rotors

1 - STRAIGHT EDGE

2 - FEELER GAUGE

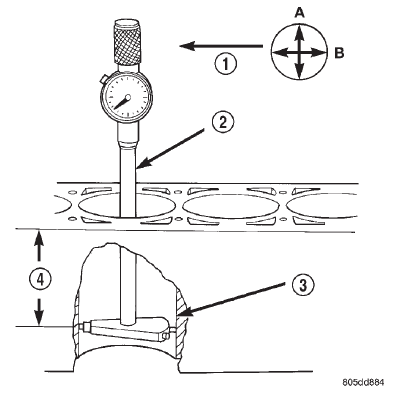

Fig. 143 Bore Gauge-Typical Fig. 143 Bore Gauge-Typical

1 - FRONT

2 - BORE GAUGE

3 - CYLINDER BORE

4 - 49.5 MM (1-15/16 in)

(2) Measure the inside diameter of the cylinder bore at three levels below top of bore. Start perpendicular (across or at 90 degrees) to the axis of the crankshaft and then take two additional reading.

(3) Measure the cylinder bore diameter crosswise to the cylinder block near the top of the bore. Repeat the measurement near the middle of the bore, then repeat the measurement near the bottom of the bore.

(4) Determine taper by subtracting the smaller diameter from the larger diameter.

(5) Rotate measuring device 90 and repeat steps above.

(6) Determine out-of-roundness by comparing the difference between each measurement.

(7) If cylinder bore taper does not exceed 0.025 mm (0.001 inch) and out-of-roundness does not exceed 0.025 mm (0.001 inch), the cylinder bore can be honed. If the cylinder bore taper or out- of-round condition exceeds these maximum limits, the cylinder block must be replaced. A slight amount of taper always exists in the cylinder bore after the engine has been in use for a period of time.

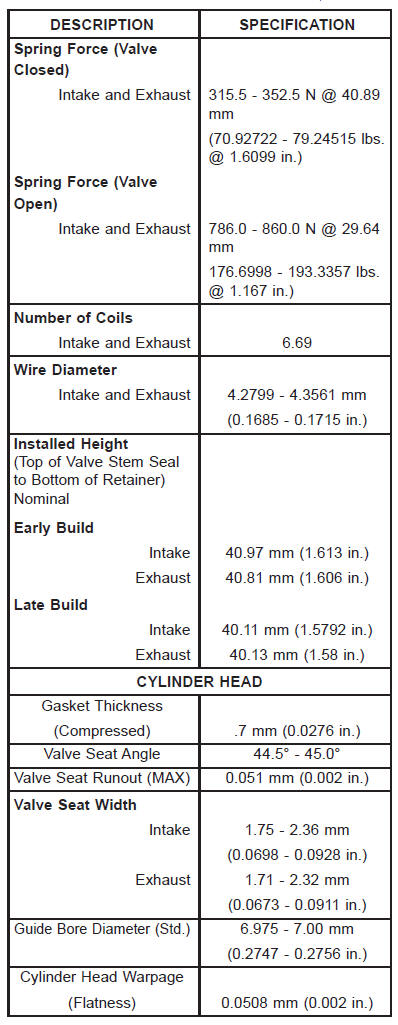

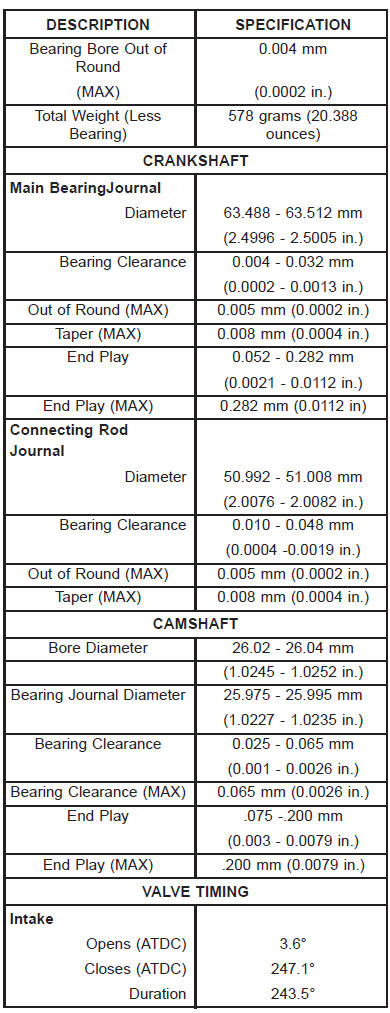

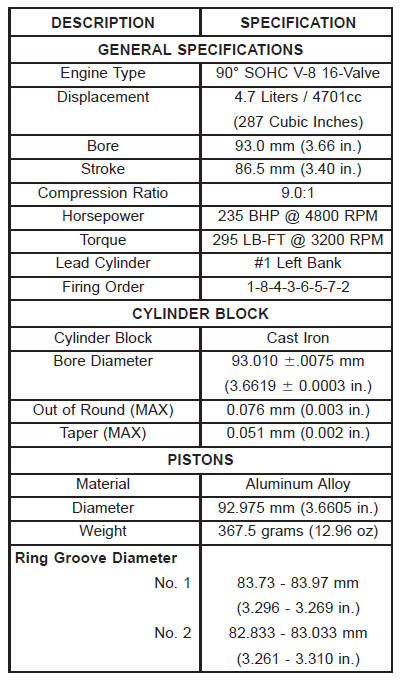

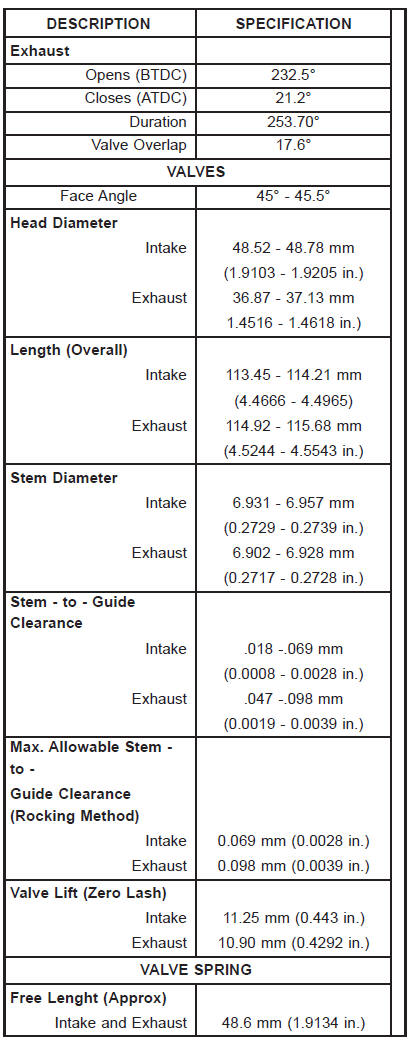

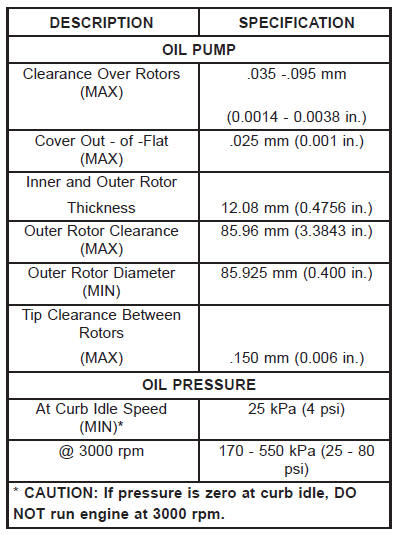

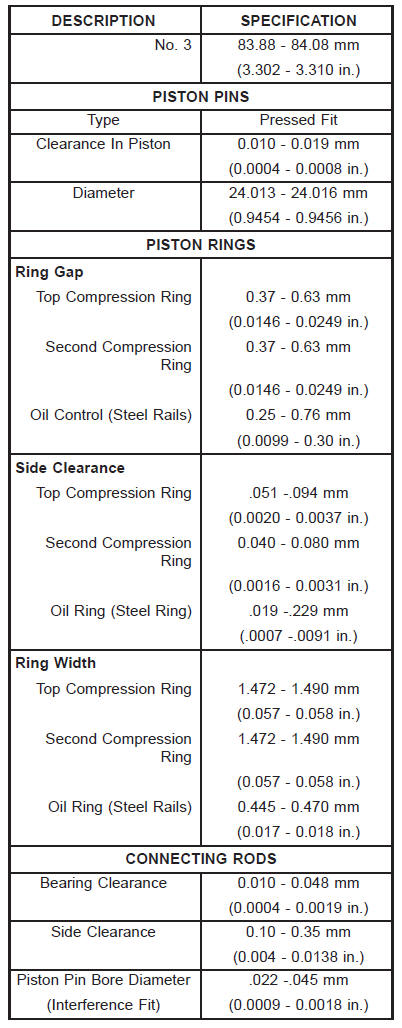

Specifications 4.7L engine

4.7L ENGINE

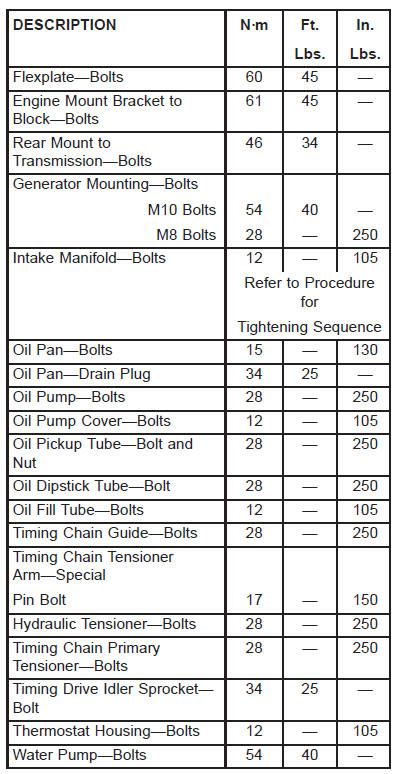

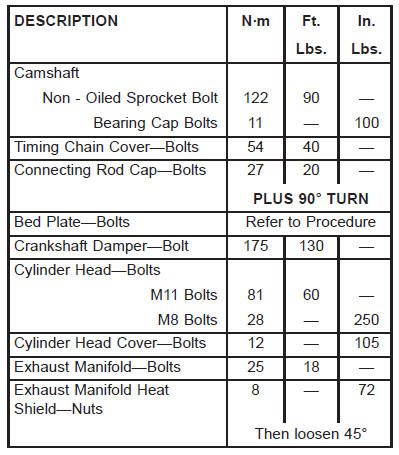

Torque

Torque

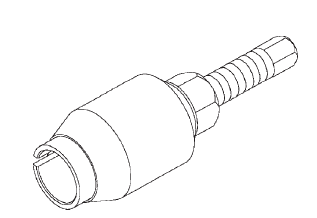

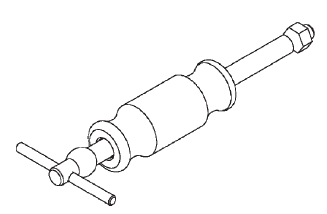

Special tools 4.7L engine

Special tools 4.7L engine

Spanner Wrench 6958 Spanner Wrench 6958

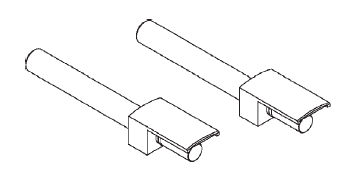

Adapter Pins 8346 Adapter Pins 8346

Engine Lifting Studs 8400 Engine Lifting Studs 8400

Engine Lift Fixture 8347 Engine Lift Fixture 8347

Front Crankshaft Seal Remover 8511 Front Crankshaft Seal Remover 8511

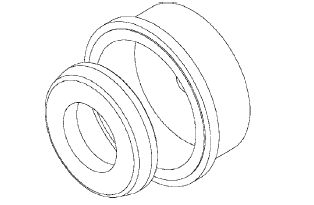

Front Crankshaft Seal Installer 8348 Front Crankshaft Seal Installer 8348

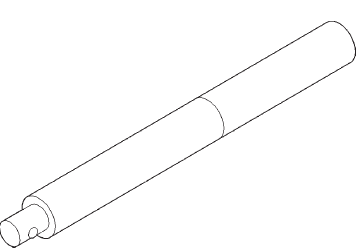

Handle C-4171 Handle C-4171

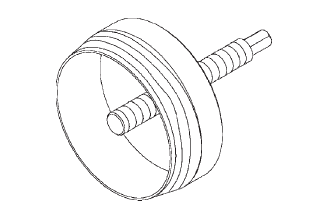

Rear Crankshaft Seal Installer 8349 Rear Crankshaft Seal Installer 8349

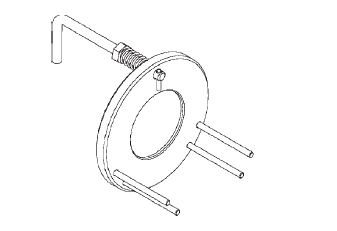

Rear Crankshaft Seal Remover 8506 Rear Crankshaft Seal Remover 8506

Connecting Rod Guides 8507 Connecting Rod Guides 8507

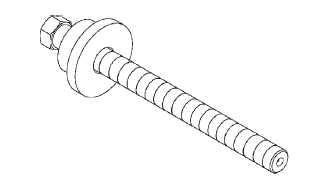

Crankshaft Damper Installer 8512 Crankshaft Damper Installer 8512

Puller 1026 Puller 1026

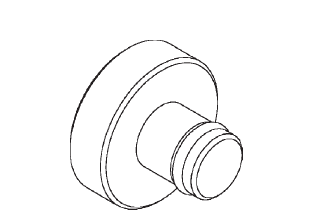

Crankshaft Damper Removal Insert 8513 Crankshaft Damper Removal Insert 8513

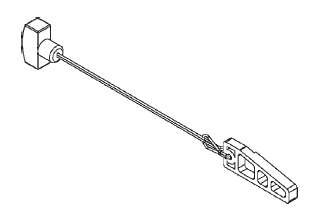

Chain Tensioner Wedge 8350 Chain Tensioner Wedge 8350

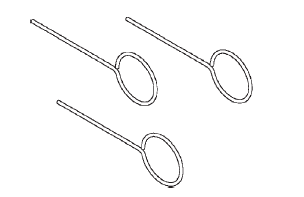

Chain Tensioner Pins 8514 Chain Tensioner Pins 8514

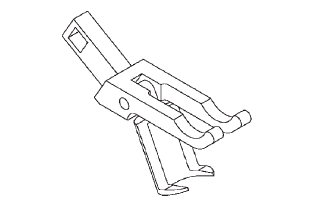

Secondary Chain Holder 8515 Secondary Chain Holder 8515

Remover, Rocker Arm 8516 Remover, Rocker Arm 8516

Valve Spring Compressor 8387 Valve Spring Compressor 8387

Idler Shaft Remover 8517 Idler Shaft Remover 8517

Valve Spring Compressor Adapters 8519 Valve Spring Compressor Adapters 8519

Valve Spring Tester C-647 Valve Spring Tester C-647

Dial Indicator C-3339 Dial Indicator C-3339

Valve Spring Compressor C-3422-B Valve Spring Compressor C-3422-B

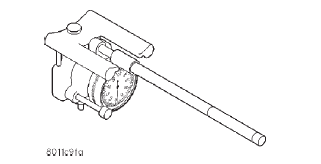

Bore Size Indicator C-119 Bore Size Indicator C-119

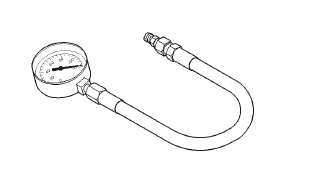

Oil Pressure Gauge C-3292 Oil Pressure Gauge C-3292

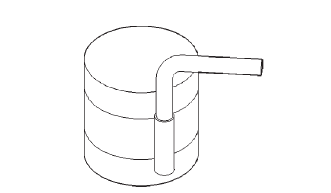

Piston Ring Compressor C-385 Piston Ring Compressor C-385

Pressure Tester Kit 7700 Pressure Tester Kit 7700

Bloc-Chek-Kit C-3685-A Bloc-Chek-Kit C-3685-A
