Lamps » Lamp service » Removal and installation
2Nd seat dome/reading lamp

REMOVAL

1) Using a small flat blade, pry the center rearward edge of the dome/reading lamp lens downward from lamp (Fig. 12).

(2) Allow the lens to hang down this will disengage the forward edge of the lamp from the headliner.

(3) Pull the forward edge of the lamp down and slide the lamp forward.

(4) Separate the lamp from the headliner.

(5) Disengage lamp wire connector from body wire harness.

(6) Separate lamp from vehicle (Fig. 13).

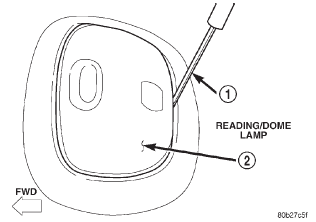

Fig. 12 Lamp Lens Fig. 12 Lamp Lens

1 - FLAT BLADE

2 - LENS

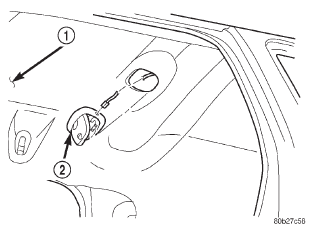

Fig. 13 Dome/Reading Lamp Fig. 13 Dome/Reading Lamp

1 - HEADLINER

2 - DOME/READING LAMP

INSTALLATION

(1) Position lamp at headliner.

(2) Connect lamp wire connector to body wire harness.

(3) Position the rearward edge of the lamp in the headliner opening and slide lamp rearward.

(4) Push the forward edge of the lamp in the headliner opening and push the lamp lens up into the lamp to secure.
